2SA1301 - Silicon PNP Power Transistor

📥 Download Datasheet

Preview of 2SA1301 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SA1301
Manufacturer Inchange Semiconductor
File Size 221.01 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SA1301_InchangeSemiconductor.pdf

2SA1301 Product details

Description

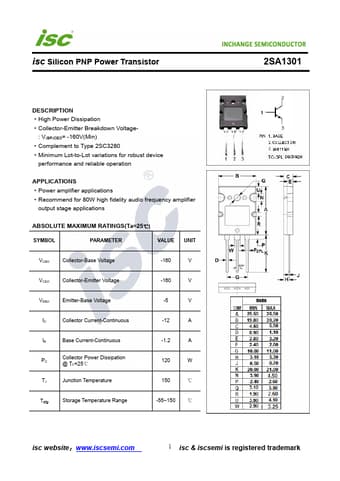

High Power Dissipation Collector-Emitter Breakdown Voltage- : V(BR)CEO= -160V(Min) Complement to Type 2SC3280 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power amplifier applications Recommend for 80W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -160 V VCEO Collector-Emitter Voltage -160 V VEB
