2SA1332 - POWER TRANSISTOR

Description

Low Collector Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Power power amplifier applications.

Driver stage amplifier applications.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SA1332 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1330 - PNP SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SA1330 - PNP Silicon Transistor (Kexin)
  • 2SA1331 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1331 - PNP Epitaxial Planar Silicon Transistors (Kexin)
  • 2SA1333 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1337 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SA1338 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1338 - PNP Epitaxial Planar Silicon Transistors (Kexin)
  • 2SA1339 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

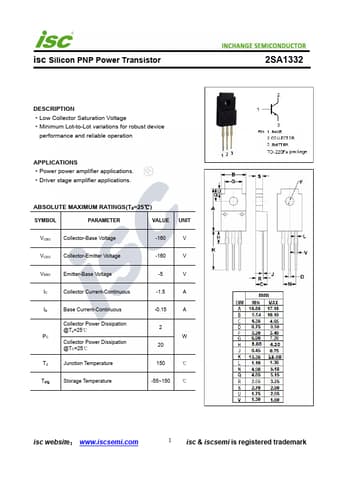

isc Silicon PNP Power Transistor DESCRIPTION ·Low Collector Saturation Voltage ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Power power amplifier applications. ·Driver stage amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -160 V VCEO Collector-Emitter Voltage -160 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -1.5 A IB Base Current-Continuous Collector Power Dissipation @Ta=25℃ PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature Tstg Storage Temperature -0.15 A 2 W 20 150 ℃ -55~150 ℃ 2SA1332 isc website： www.iscsemi.
