2SA1302 - Silicon PNP Power Transistor

📥 Download Datasheet

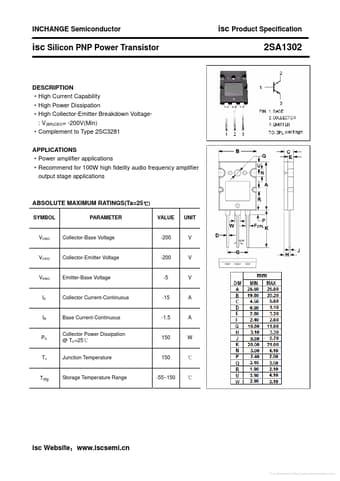

Preview of 2SA1302 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SA1302
Manufacturer Inchange Semiconductor
File Size 136.97 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SA1302_InchangeSemiconductor.pdf

2SA1302 Product details

Description

High Current Capability High Power Dissipation High Collector-Emitter Breakdown Voltage: V(BR)CEO= -200V(Min) Complement to Type 2SC3281 APPLICATIONS Power amplifier applications Recommend for 100W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -200 V VCEO Collector-Emitter Voltage -200 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Conti
