IRF1010EZ N-Channel MOSFET

IRF1010EZ Description

isc N-Channel MOSFET Transistor IRF1010EZ，IIRF1010EZ *.

IRF1010EZ Features

* Static drain-source on-resistance: RDS(on) ≤8.5mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

IRF1010EZ Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 60 IDM Drain Current-Single Pulsed 340 PD Total Dissipation @TC=25℃ 140 Tj Max. Operating Junction Temperature 175 Tstg Storage Te

📥 Download Datasheet

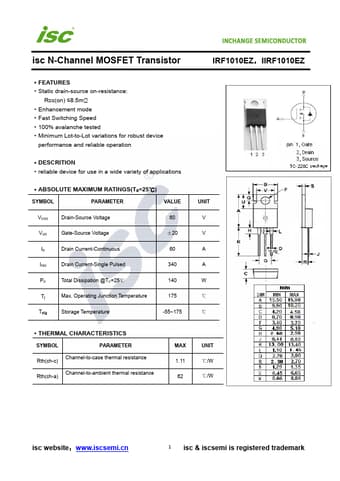

Preview of IRF1010EZ PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRF1010EZ
Manufacturer
INCHANGE
File Size
241.08 KB
Datasheet
IRF1010EZ-INCHANGE.pdf
Description
N-Channel MOSFET
