2SC1108 - NPN Transistor

The 2SC1108 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

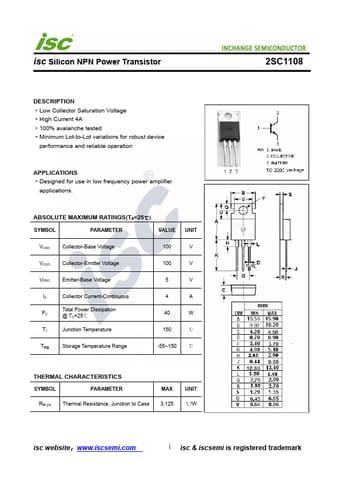

Official preview page of the 2SC1108 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC1108
Manufacturer INCHANGE
File Size 181.46 KB
Description NPN Transistor
Datasheet download datasheet 2SC1108-INCHANGE.pdf
Additional preview pages of the 2SC1108 datasheet.

2SC1108 Product details

Description

Low Collector Saturation Voltage High Current 4A 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in low frequency power amplifier applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous PC Total Power Dissipation @ T
