2SC1102 - SILICON POWER TRANSISTOR

Description

With TO-66 package High voltage High transition frequency APPLICATIONS

Absolute maximum ratings(Ta=25?

📥 Download Datasheet

Datasheet Details

Part number 2SC1102
Manufacturer SavantIC
File Size 161.89 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1102 Datasheet

📁 Similar Datasheet

  • 2SC1102 - NPN Transistor (INCHANGE)
  • 2SC1106 - NPN Transistor (INCHANGE)
  • 2SC1108 - NPN Transistor (INCHANGE)
  • 2SC1111 - NPN Transistor (INCHANGE)
  • 2SC1112 - NPN Transistor (INCHANGE)
  • 2SC1113 - NPN Transistor (INCHANGE)
  • 2SC1114 - NPN Transistor (INCHANGE)
  • 2SC1115 - NPN Transistor (INCHANGE)
  • 2SC1116 - NPN Transistor (INCHANGE)
  • 2SC1122A - Silicon NPN Transistor (ETC)
Other Datasheets by SavantIC
  • 2SC1106 - SILICON POWER TRANSISTOR
  • 2SC1108 - SILICON POWER TRANSISTOR
  • 2SC1111 - SILICON POWER TRANSISTOR
  • 2SC1113 - SILICON POWER TRANSISTOR
  • 2SC1114 - SILICON POWER TRANSISTOR
  • 2SC1115 - SILICON POWER TRANSISTOR
  • 2SC1116 - SILICON POWER TRANSISTOR
  • 2SC1140 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

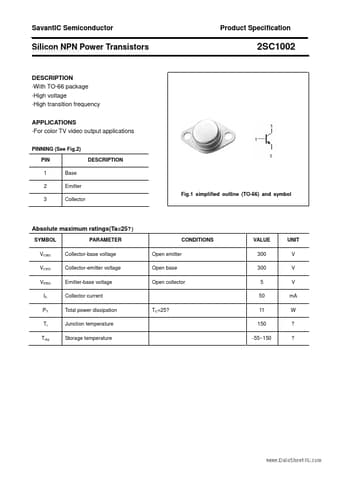

SavantIC Semiconductor Product Specification Silicon NPN Power Transistors www.DataSheet4U.com 2SC1002 DESCRIPTION ·With TO-66 package ·High voltage ·High transition frequency APPLICATIONS ·For color TV video output applications PINNING (See Fig.2) PIN 1 2 3 Base Emitter Fig.1 simplified outline (TO-66) and symbol Collector DESCRIPTION Absolute maximum ratings(Ta=25? ) SYMBOL VCBO VCEO VEBO IC PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Total power dissipation Junction temperature Storage temperature TC=25? CONDITIONS Open emitter Open base Open collector VALUE 300 300 5 50 11 150 -55~150 UNIT V V V mA W ? ? SavantIC Semiconductor Product Specification Silicon NPN Power Transistors www.DataSheet4U.
