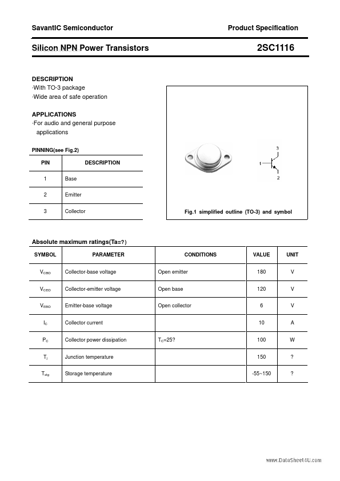

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors www.DataSheet4U.com
2SC1116
DESCRIPTION ·With TO-3 package ·Wide area of safe operation APPLICATIONS ·For audio and general purpose applications
PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION
Absolute maximum ratings(Ta=? )
SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25? CONDITIONS Open emitter Open base Open collector VALUE 180 120 6 10 100 150 -55~150 UNIT V V V A W ? ?
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors www.DataSheet4U.
