2SC1161 - NPN Transistor

The 2SC1161 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

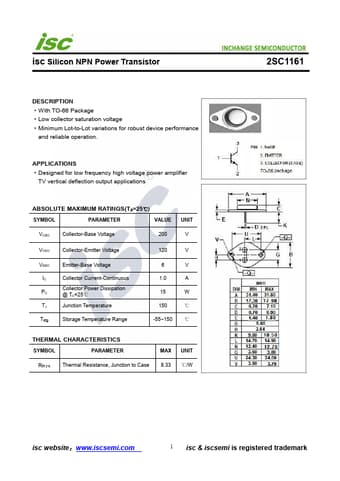

Official preview page of the 2SC1161 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC1161
Manufacturer INCHANGE
File Size 177.18 KB
Description NPN Transistor
Datasheet download datasheet 2SC1161-INCHANGE.pdf
Additional preview pages of the 2SC1161 datasheet.

2SC1161 Product details

Description

With TO-66 Package Low collector saturation voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation.APPLICATIONS Designed for low frequency high voltage power amplifier TV vertical deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 120 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power
