2SC1115 - SILICON POWER TRANSISTOR

Description

With TO-3 package Complement to type 2SA746 Wide area of safe operation APPLICATIONS

Absolute maximum ratings(Ta=?

SavantIC

📥 Download Datasheet

Datasheet Details

Part number	2SC1115
Manufacturer	SavantIC
File Size	186.86 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SC1115 Datasheet

📁 Similar Datasheet

2SC1115 - NPN Transistor (INCHANGE)
2SC1111 - NPN Transistor (INCHANGE)
2SC1112 - NPN Transistor (INCHANGE)
2SC1113 - NPN Transistor (INCHANGE)
2SC1114 - NPN Transistor (INCHANGE)
2SC1116 - NPN Transistor (INCHANGE)
2SC1102 - NPN Transistor (INCHANGE)
2SC1106 - NPN Transistor (INCHANGE)
2SC1108 - NPN Transistor (INCHANGE)
2SC1122A - Silicon NPN Transistor (ETC)

Other Datasheets by SavantIC

2SC1111 - SILICON POWER TRANSISTOR
2SC1113 - SILICON POWER TRANSISTOR
2SC1114 - SILICON POWER TRANSISTOR
2SC1116 - SILICON POWER TRANSISTOR
2SC1102 - SILICON POWER TRANSISTOR
2SC1106 - SILICON POWER TRANSISTOR
2SC1108 - SILICON POWER TRANSISTOR
2SC1140 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

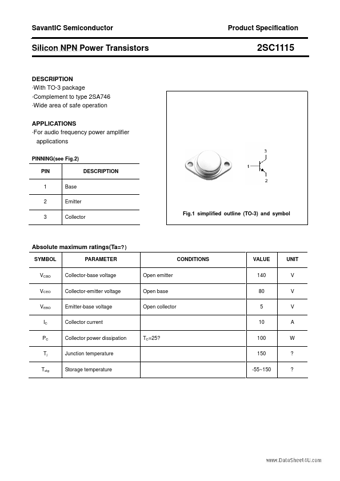

SavantIC Semiconductor Product Specification Silicon NPN Power Transistors www.DataSheet4U.com 2SC1115 DESCRIPTION ·With TO-3 package ·Complement to type 2SA746 ·Wide area of safe operation APPLICATIONS ·For audio frequency power amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=? ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25? Open emitter Open base Open collector CONDITIONS VALUE 140 80 5 10 100 150 -55~150 UNIT V V V A W ? ? SavantIC Semiconductor Product Specification Silicon NPN Power Transistors www.
