2SK1764 - N-Channel MOSFET

Hitachi Semiconductor

Datasheet Details

Part number	2SK1764
Manufacturer	Hitachi Semiconductor
File Size	28.14 KB
Description	N-Channel MOSFET
Datasheet	2SK1764_HitachiSemiconductor.pdf

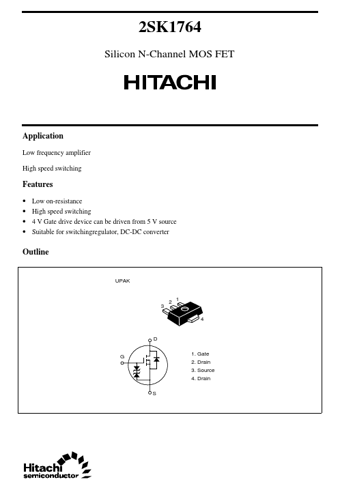

Low on-resistance High speed switching 4 V Gate drive device can be driven from 5 V source Suitable for switchingregulator, DC-DC converter Outline UPAK 2 1 4 3 D G 1. Gate 2. Drain 3. Source 4. Drain S 2SK1764 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel power dissipation Channel temperature Storage temperature Symbol VDSS VG.
