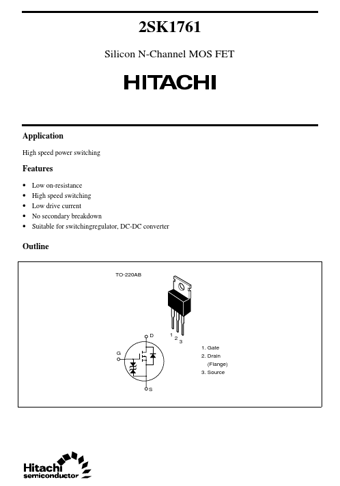

2SK1761 - N-Channel MOSFET

Hitachi Semiconductor

Datasheet Details

Part number	2SK1761
Manufacturer	Hitachi Semiconductor
File Size	45.20 KB
Description	N-Channel MOSFET
Datasheet	2SK1761_HitachiSemiconductor.pdf

Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switchingregulator, DC-DC converter Outline TO-220AB D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1761 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10.
