2SK1775 - N-Channel MOSFET

Name: 2SK1775
SKU: 2SK1775-202504

Hitachi Semiconductor

The 2SK1775 by Hitachi Semiconductor is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	2SK1775
Manufacturer	Hitachi Semiconductor
File Size	33.60 KB
Description	N-Channel MOSFET
Datasheet	2SK1775_HitachiSemiconductor.pdf

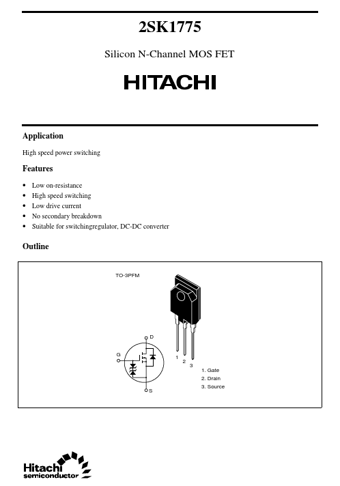

Additional preview pages of the 2SK1775 datasheet.

Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switchingregulator, DC-DC converter Outline TO-3PFM D G 1 2 3 S 1. Gate 2. Drain 3. Source 2SK1775 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10 µs, duty.
