2SK1772 - N-Channel MOSFET

Hitachi Semiconductor

Datasheet Details

Part number	2SK1772
Manufacturer	Hitachi Semiconductor
File Size	40.81 KB
Description	N-Channel MOSFET
Datasheet	2SK1772_HitachiSemiconductor.pdf

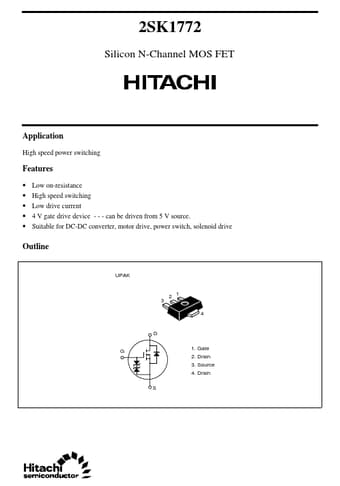

Low on-resistance High speed switching Low drive current 4 V gate drive device - - - can be driven from 5 V source. Suitable for DC-DC converter, motor drive, power switch, solenoid drive Outline UPAK 2 1 4 3 D G 1. Gate 2. Drain 3. Source 4. Drain S 2SK1772 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Ch.
