2SK1766 - N-Channel MOSFET Transistor

Description

Drain Current ID= 10A@ TC=25℃ Drain Source Voltage : VDSS= 250V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power supplies, converters and power motor controls ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SY

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK176 N-Channel MOSFET Hitachi Semiconductor
2SK1760 MOS Field Effect Power Transistor Renesas
2SK1761 N-Channel MOSFET Hitachi Semiconductor
2SK1762 N-Channel MOSFET Hitachi Semiconductor
2SK1762 Silicon N-Channel MOSFET Renesas Technology

Other Datasheets by Inchange Semiconductor

Part Number Description
2SK1767 N-Channel MOSFET Transistor
2SK1700 N-Channel MOSFET Transistor
2SK1701 N-Channel MOSFET Transistor
2SK1703 N-Channel MOSFET Transistor
2SK1704 N-Channel MOSFET Transistor

Full PDF Text Transcription

Click to expand full text

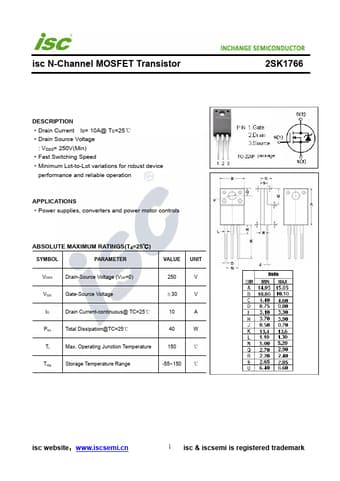

isc N-Channel MOSFET Transistor DESCRIPTION ·Drain Current ID= 10A@ TC=25℃ ·Drain Source Voltage : VDSS= 250V(Min) ·Fast Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Power supplies, converters and power motor controls ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 250 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 10 A Ptot Total Dissipation@TC=25℃ 40 W Tj Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SK1766 isc website：www.iscsemi.
