HMS65N03Q - N-Channel Super Trench Power MOSFET

Name: HMS65N03Q
SKU: HMS65N03Q-1581494

H&M Semiconductor

📥 Download Datasheet

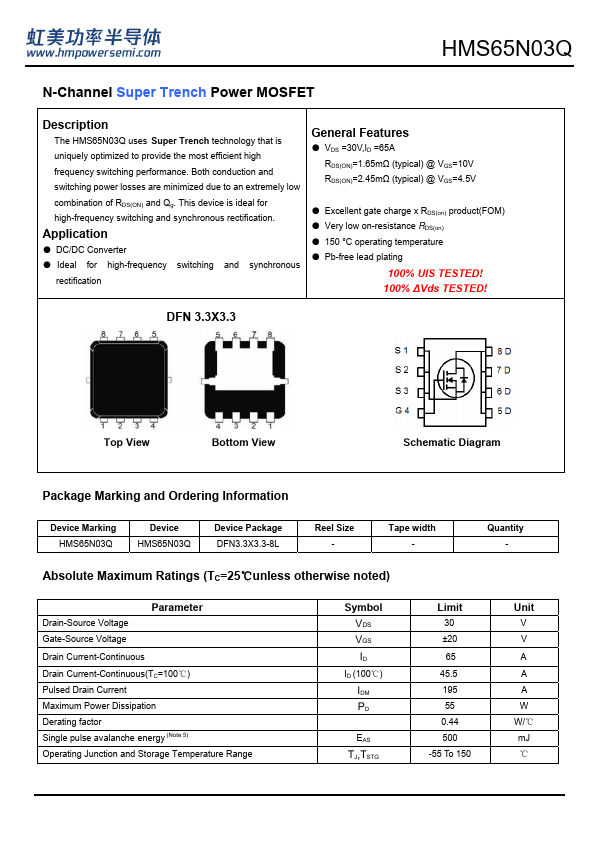

HMS65N03Q Datasheet Preview — Preview of HMS65N03Q PDF

Datasheet Details

Part number	HMS65N03Q
Manufacturer	H&M Semiconductor
File Size	691.82 KB
Description	N-Channel Super Trench Power MOSFET
Datasheet	HMS65N03Q-HMSemiconductor.pdf

HMS65N03Q Product details

Description

The HMS65N03Q uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. DC/DC Converter Ideal for high-frequency switching and synchronous rectification General

Features

VDS =30V,ID =65A RDS(ON)=1.65mΩ (typical) @ VGS=10V RDS(ON)=2.45mΩ (typical) @ VGS=4.5V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
150 °C operating temperature.
Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! DFN 3.3X3.3 Top View Bottom View Schematic Diagram Package Marking and Ordering Information Device Marking HMS65N03Q Device HMS65N03Q Device Package DFN3.3X3.3-8L Reel Size - Tape width - Quantity - Absolute M.
