HMS60N06Q - N-Channel Super Trench Power MOSFET

Name: HMS60N06Q
SKU: HMS60N06Q-1581452

H&M Semiconductor

📥 Download Datasheet

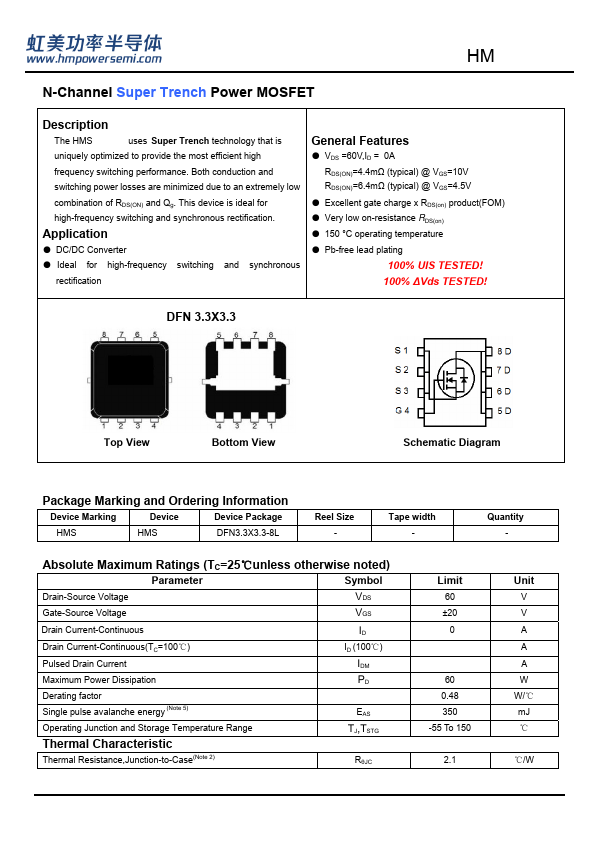

HMS60N06Q Datasheet Preview — Preview of HMS60N06Q PDF

Datasheet Details

Part number	HMS60N06Q
Manufacturer	H&M Semiconductor
File Size	612.79 KB
Description	N-Channel Super Trench Power MOSFET
Datasheet	HMS60N06Q-HMSemiconductor.pdf

HMS60N06Q Product details

Description

The HMS14 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. DC/DC Converter Ideal for high-frequency switching and synchronous rectification General

Features

VDS =60V,ID =0A RDS(ON)=4.4mΩ (typical) @ VGS=10V RDS(ON)=6.4mΩ (typical) @ VGS=4.5V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
150 °C operating temperature.
Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! DFN 3.3X3.3 Top View Bottom View Schematic Diagram Package Marking and Ordering Information Device Marking Device Device Package HMS14 HMS14 DFN3.3X3.3-8L Reel Size - Tape width - Quantity - Absolute.
