HM3416 - 1A Synchronous Step-Down Converter

HM3416 Description

 HM3416 1.5MHz, 1A Synchronous Step-Down Converter .
The +03416 isDFRQVWDQWIUHTXHQF current mode PWM step-down converter.

HM3416 Features

* High Efficiency: Up to 96%
* 1.5MHz Constant Frequency Operation
* 1A Output Current
* No Schottky Diode Required
* 2.0V to 5.5V Input Voltage Range
* Output Voltage as Low as 0.6V
* 100% Duty Cycle in Dropout
* Low Quiescent Current: 20µA
* Slope Compensated Cu

HM3416 Applications

* Cellular and Smart Phones
* Wireless and DSL Modems
* PDAs
* Digital Still and Video Cameras

📥 Download Datasheet

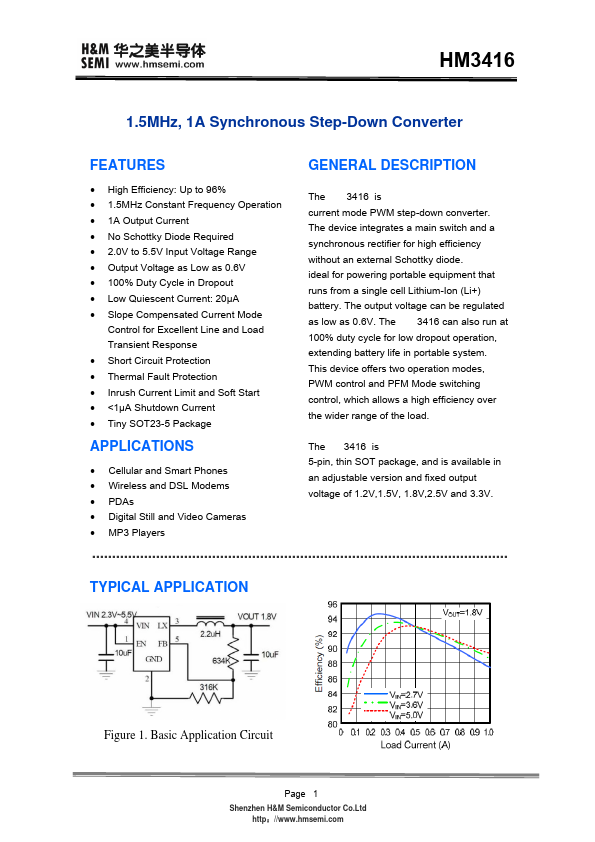

Preview of HM3416 PDF

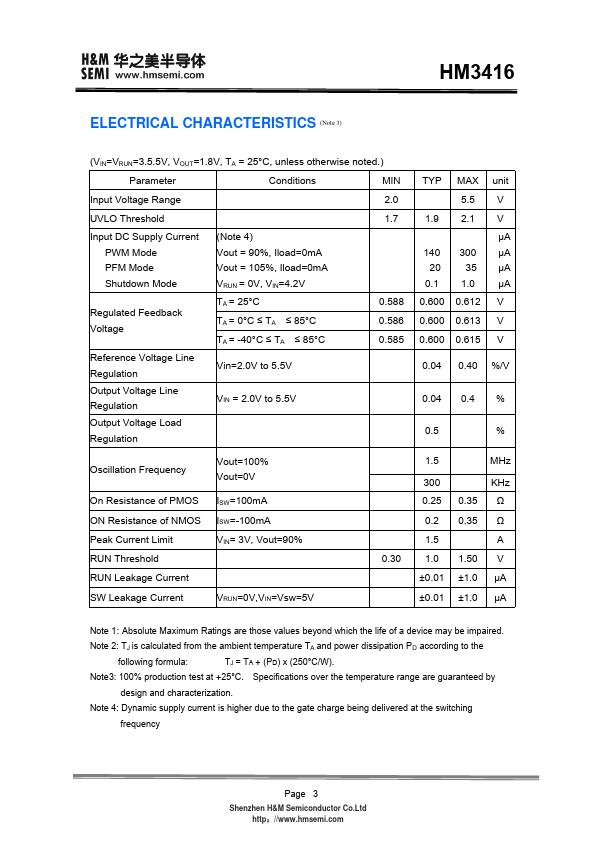

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM3416
Manufacturer
H&M Semiconductor
File Size
284.36 KB
Datasheet
HM3416-HMSemiconductor.pdf
Description
1A Synchronous Step-Down Converter
