HM3422 N-Channel 60V MOSFET

HM3422 Description

HM3422-VB HM3422-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.075 at VGS = 10 V 60 0.086 at VGS.

HM3422 Features

* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET
* 100 % Rg Tested

HM3422 Applications

* Battery Switch
* DC/DC Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C Pul

📥 Download Datasheet

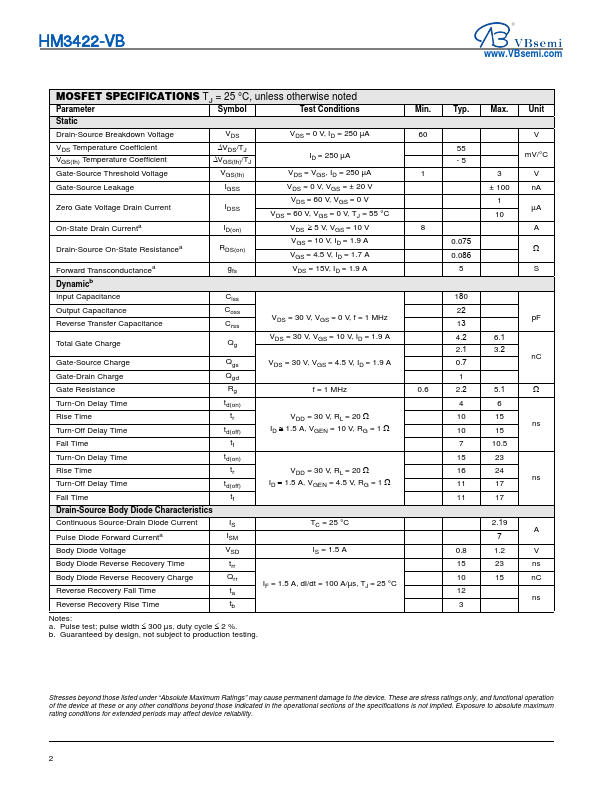

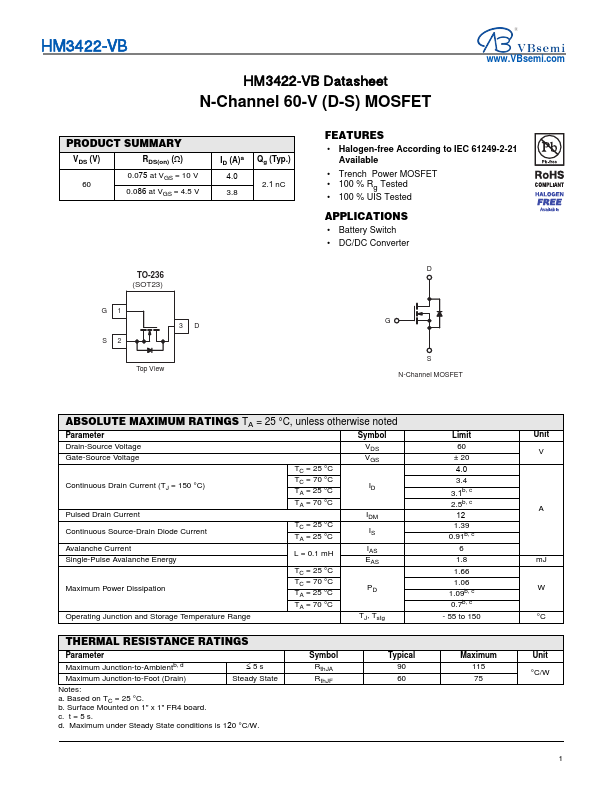

Preview of HM3422 PDF

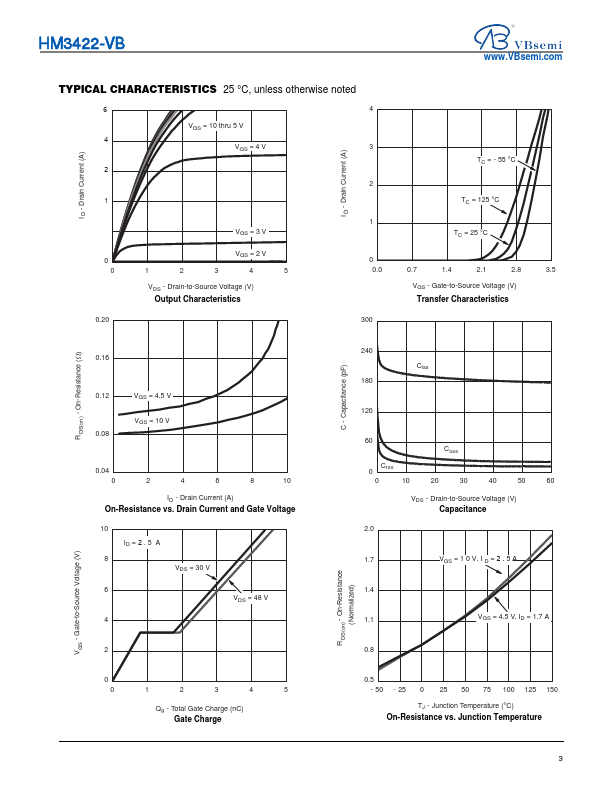

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM3422
Manufacturer
VBsemi
File Size
256.12 KB
Datasheet
HM3422-VBsemi.pdf
Description
N-Channel 60V MOSFET
