HM3410 - 1.2A synchronous rectification Buck converter

HM3410 Description

HM3410 High efficiency, 1.2A synchronous rectification Buck converter with built-in switch General .
The HM3410 is a high-efficiency synchronous Buck converter that can operate over a wide input voltage range of 2.

HM3410 Features

* 2.5V~5.5V input voltage range
* 35uA ultra-low quiescent current
* Internal soft-start reduces chip stress
* Short circuit protection Hiccup mode
* Internal integrated low RDS(ON) switch
* 1.5MHz switching frequency minimizes external components
* Optimized PFM mode for

HM3410 Applications

* to improve light-load efficiency and extend battery life
* 100% duty cycle supports input and output low dropout operation
* RoHS Compliant and Halogen Free
* HM3410:SOT23-5 / HM3410M6:SOT23-6 / HM3410D:DFN2X2-6L Applications
* Set-top box, security camera
* Mobile phones, handhe

📥 Download Datasheet

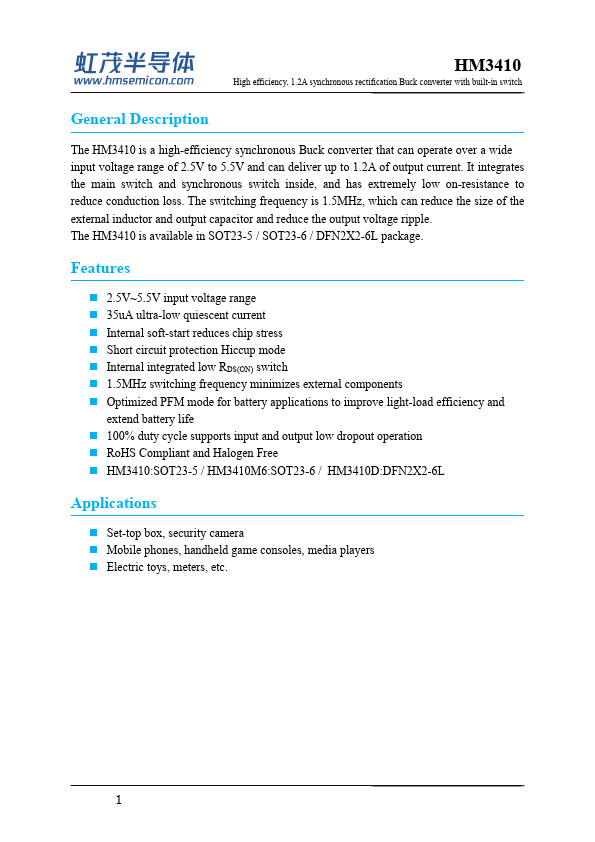

Preview of HM3410 PDF

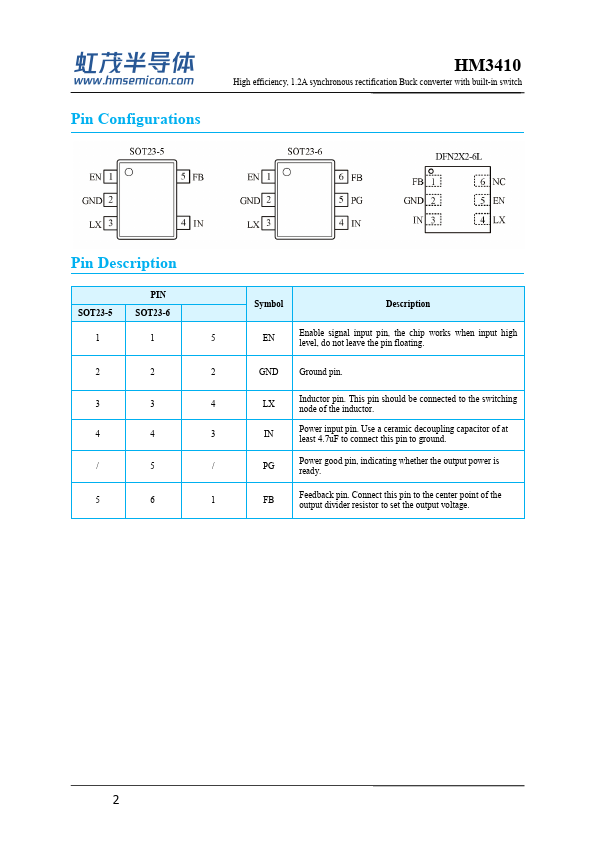

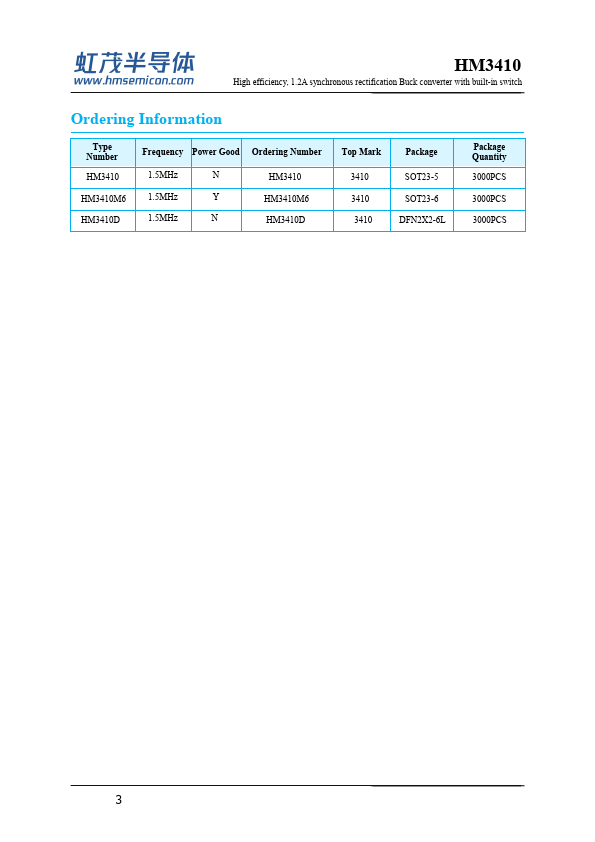

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM3410
Manufacturer
H&M Semiconductor
File Size
3.03 MB
Datasheet
HM3410-HMSemiconductor.pdf
Description
1.2A synchronous rectification Buck converter
