NDS8434A Single P-Channel MOSFET

NDS8434A Description

March 1997 NDS8434A Single P-Channel Enhancement Mode Field Effect Transistor General .
SO-8 P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

NDS8434A Features

* -7.8 A, -20 V. RDS(ON) = 0.024 Ω @ VGS = -4.5 V RDS(ON) = 0.032 Ω @ VGS = -2.5V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. ___________________________________________________________________________________

📥 Download Datasheet

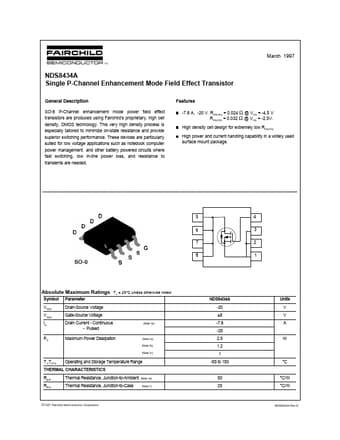

Preview of NDS8434A PDF
datasheet Preview Page 2 datasheet Preview Page 3
