NDS8410A Single 30V N-Channel PowerTrench MOSFET

NDS8410A Description

NDS8410A October 2004 NDS8410A Single 30V N-Channel PowerTrench® MOSFET General .
This N-Channel MOSFET are produced using Fairchild’s proprietary, high cell density, DMOS technology.

NDS8410A Features

* 10.8 A, 30 V RDS(ON) = 12 mΩ @ VGS = 10 V RDS(ON) = 17 mΩ @ VGS = 4.5 V
* Ultra-low gate charge
* High performance trench technology for extremely low RDS(ON)
* High power and current handling capability DD DD DD DD SO-8 Pin 1 SO-8 SS SS SS GG 54 63 72 81 Absol

📥 Download Datasheet

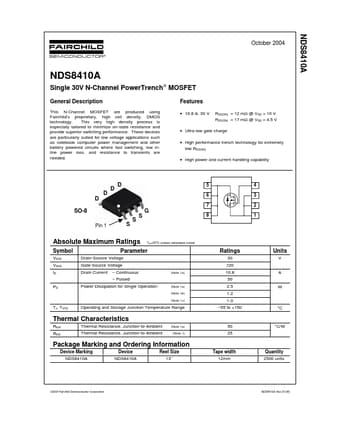

Preview of NDS8410A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NDS8410A
Manufacturer
Fairchild
File Size
210.52 KB
Datasheet
NDS8410A_FairchildSemiconductor.pdf
Description
Single 30V N-Channel PowerTrench MOSFET
