SFH9240 - Advanced Power MOSFET

Name: SFH9240
SKU: SFH9240-486834

Fairchild Semiconductor

The SFH9240 by Fairchild Semiconductor is a Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SFH9240
Manufacturer	Fairchild Semiconductor
File Size	207.50 KB
Description	Advanced Power MOSFET
Datasheet	SFH9240_FairchildSemiconductor.pdf

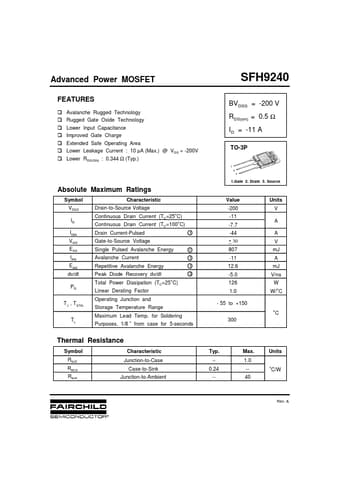

Additional preview pages of the SFH9240 datasheet.

! Avalanche Rugged Technology ! Rugged Gate Oxide Technology ! Lower Input Capacitance ! Improved Gate Charge ! Extended Safe Operating Area ! Lower Leakage Current : 10 µA (Max. ) @ VDS = -200V ! Lower RDS(ON) : 0.344 Ω (Typ. ) SFH9240 BVDSS = -200 V RDS(on) = 0.5 Ω ID = -11 A TO-3P 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 C) Continuous Drain Current.
