SFH9140 - Advanced Power MOSFET

Name: SFH9140
SKU: SFH9140-486828

Fairchild Semiconductor

The SFH9140 by Fairchild Semiconductor is a Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SFH9140
Manufacturer	Fairchild Semiconductor
File Size	209.60 KB
Description	Advanced Power MOSFET
Datasheet	SFH9140_FairchildSemiconductor.pdf

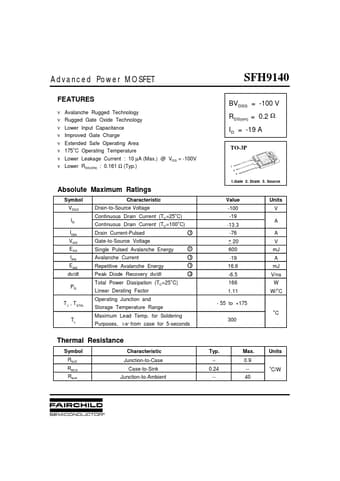

Additional preview pages of the SFH9140 datasheet.

ν Avalanche Rugged Technology ν Rugged Gate Oxide Technology ν Lower Input Capacitance ν Improved Gate Charge ν Extended Safe Operating Area ν 175 C Operating Temperature ν Lower Leakage Current : 10 µA (Max. ) @ VDS = -100V ν Lower RDS(ON) : 0.161 Ω (Typ. ) o SFH9140 BVDSS = -100 V RDS(on) = 0.2 Ω ID = -19 A TO-3P 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC.
