SFH9202 - Reflective Interrupter

Description

Beschreibung Anode Emitter Collector Cathode SFH 9202 2012-08-17 10 Version 1.0 (not for new design) Recommended Solder Pad Empfohlenes Lötpaddesign SFH 9202 1.27 (0.050) 0.6 (0.024) 1.2 (0.047) 1.27 (0.050) Padgeometrie für verbesserte Wärmeableitung Paddesign for improved Heat dissipation

Features

  • IR-GaAs-emitter in combination with a silicon NPN phototransistor.
  • Optimal operating distance 1 mm to 5 mm.
  • Daylight cut-off filter.
  • Low saturation voltage.
  • Emitter and detector electrically isolated.
  • Preconditioning acc. to JEDEC Level 4.
  • Replacement: SFH 9206 Besondere Merkmale:.
  • IR-GaAs-Lumineszenzdiode in Kombination mit einem Si-NPN-Fototransistor.
  • Optimaler Arbeitsabstand 1 mm bis 5 mm.
  • Tageslichts.

📥 Download Datasheet

Datasheet Details

Part number SFH9202
Manufacturer ams OSRAM
File Size 210.40 KB
Description Reflective Interrupter
Datasheet download datasheet SFH9202 Datasheet

📁 Similar Datasheet

  • SFH9201 - Reflective Interrupter (ETC)
  • SFH9240 - Advanced Power MOSFET (Fairchild Semiconductor)
  • SFH9244 - Advanced Power MOSFET (Fairchild Semiconductor)
  • SFH9250L - Advanced Power MOSFET (Fairchild Semiconductor)
  • SFH900 - SFH900-A LOW-COST MINIATURE REFLEX OPTICAL SENSOR (Siemens Semiconductor Group)
  • SFH9140 - Advanced Power MOSFET (Fairchild Semiconductor)
  • SFH9154 - Advanced Power MOSFET (Fairchild Semiconductor)
  • SFH9154 - P-Channel MOSFET (INCHANGE)
  • SFH9340 - Slotted Interrupter (ETC)
  • SFH9341 - Slotted Interrupter (ETC)
Other Datasheets by OSRAM

Full PDF Text Transcription

Click to expand full text

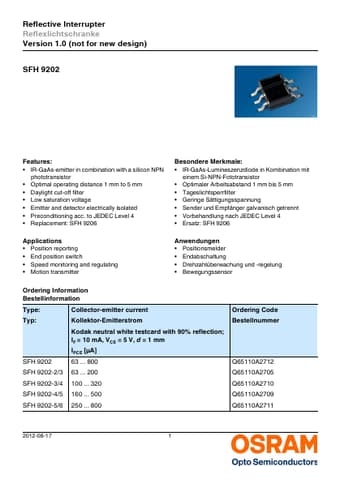

2012-08-17 Reflective Interrupter Reflexlichtschranke Version 1.0 (not for new design) SFH 9202 Features: • IR-GaAs-emitter in combination with a silicon NPN phototransistor • Optimal operating distance 1 mm to 5 mm • Daylight cut-off filter • Low saturation voltage • Emitter and detector electrically isolated • Preconditioning acc.
