SFH9154 - Advanced Power MOSFET

Name: SFH9154
SKU: SFH9154-486829

Fairchild Semiconductor

The SFH9154 by Fairchild Semiconductor is a Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SFH9154
Manufacturer	Fairchild Semiconductor
File Size	231.41 KB
Description	Advanced Power MOSFET
Datasheet	SFH9154_FairchildSemiconductor.pdf

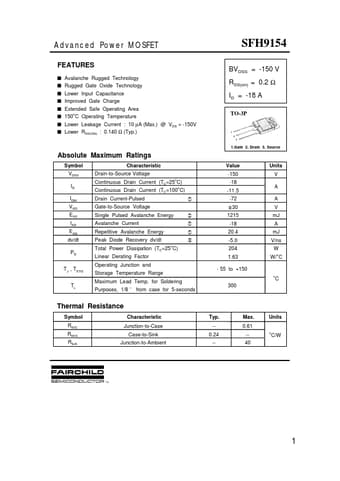

Additional preview pages of the SFH9154 datasheet.

s Avalanche Rugged Technology s Rugged Gate Oxide Technology s Lower Input Capacitance s Improved Gate Charge s Extended Safe Operating Area s 150 C Operating Temperature s Lower Leakage Current : 10 µA (Max. ) @ VDS = -150V s Lower RDS(ON) : 0.140 Ω (Typ. ) o SFH9154 BVDSS = -150 V RDS(on) = 0.2 Ω ID = -18 A TO-3P 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC.
