SFH9250L - Advanced Power MOSFET

Name: SFH9250L
SKU: SFH9250L-486836

Fairchild Semiconductor

The SFH9250L by Fairchild Semiconductor is a Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SFH9250L
Manufacturer	Fairchild Semiconductor
File Size	546.66 KB
Description	Advanced Power MOSFET
Datasheet	SFH9250L_FairchildSemiconductor.pdf

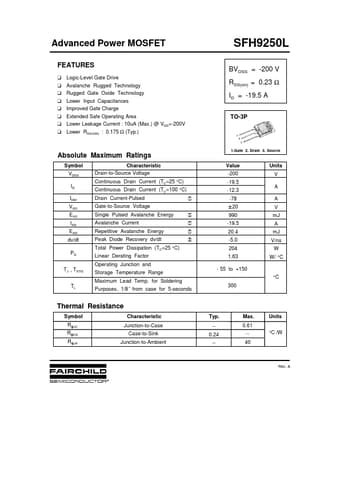

Additional preview pages of the SFH9250L datasheet.

❑ Logic-Level Gate Drive ❑ Avalanche Rugged Technology ❑ Rugged Gate Oxide Technology ❑ Lower Input Capacitances ❑ Improved Gate Charge ❑ Extended Safe Operating Area ❑ Lower Leakage Current : 10uA (Max. ) @ VDS=-200V ❑ Lower RDS(ON) : 0.175 Ω (Typ. ) SFH9250L BVDSS = -200 V RDS(on) = 0.23 Ω ID = -19.5 A TO-3P 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 °.
