RFP70N06 N-Channel Power MOSFET

Fairchild Semiconductor

RFP70N06 Description

Data Sheet September 2013 RFP70N06 N-Channel Power MOSFET 60V, 70A, 14 mΩ These are N-Channel power MOSFETs manufactured using the MegaFET process..

RFP70N06 Features

* 70A, 60V
* rDS(on) = 0.014Ω
* Temperature Compensated PSPICE® Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve (Single Pulse)
* 175oC Operating Temperature
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Comp

RFP70N06 Applications

* such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits. Formerly developmental type TA78440. Ordering Information PART NUMBER RFP70N06 PACKAGE TO-220AB BRAND RFP70N06 NOTE: When ordering use the en

📥 Download Datasheet

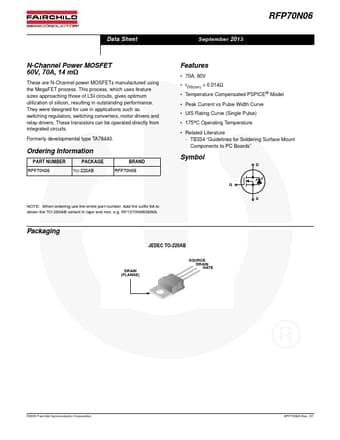

RFP70N06 Datasheet Preview — Preview of RFP70N06 PDF

Datasheet Details

Part number: RFP70N06
Manufacturer: Fairchild Semiconductor
File Size: 574.63 KB
Datasheet: RFP70N06_FairchildSemiconductor.pdf
Description: N-Channel Power MOSFET
