RFP14N05L N-Channel Power MOSFET

RFP14N05L Description

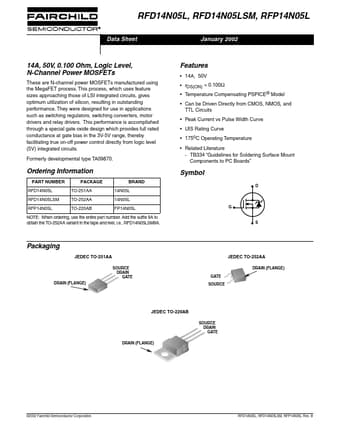

RFD14N05L, RFD14N05LSM, RFP14N05L Data Sheet January 2002 14A, 50V, 0.100 Ohm, Logic Level, N-Channel Power MOSFETs These are N-channel power MOSFETs.

RFP14N05L Features

* 14A, 50V
* rDS(ON) = 0.100Ω
* Temperature Compensating PSPICE® Model
* Can be Driven Directly from CMOS, NMOS, and TTL Circuits
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature
* Related Literature

RFP14N05L Applications

* such as switching regulators, switching converters, motor drivers and relay drivers. This performance is accomplished through a special gate oxide design which provides full rated conductance at gate bias in the 3V-5V range, thereby facilitating true on-off power control directly from logic level (5
