RFP14N05 N-Channel Power MOSFET

RFP14N05 Description

RFD14N05, RFD14N05SM, RFP14N05 Data Sheet January 2002 14A, 50V, 0.100 Ohm, N-Channel Power MOSFETs These are N-channel power MOSFETs manufactured us.

RFP14N05 Features

* 14A, 50V
* rDS(ON) = 0.100Ω
* Temperature Compensating PSPICE ® Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175o C Operating Temperature
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC

📥 Download Datasheet

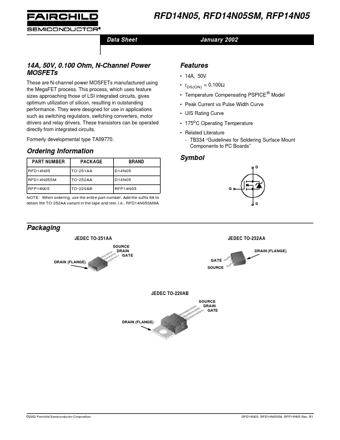

Preview of RFP14N05 PDF
datasheet Preview Page 2 datasheet Preview Page 3
