RFP7N35 N-Channel MOSFET

Intersil Corporation

RFP7N35 Description

Semiconductor RFM7N35, RFM7N40, RFP7N35, RFP7N40 7A, 350V and 400V, 0.75 Ohm, N-Channel Power MOSFETs .
These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors designed for applications such as switching regulators, switching conv.

RFP7N35 Features

* 7A, 350V and 400V
* rDS(ON) = 0.75Ω
* SOA is Power Dissipation Limited
* Nanosecond Switching Speeds
* Linear Transfer Characteristics
* High Input Impedance
* Majority Carrier Device
* Related Literature - TB334 “Guidelines for Solde

RFP7N35 Applications

* such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA17424. July 1998 Fea

📥 Download Datasheet

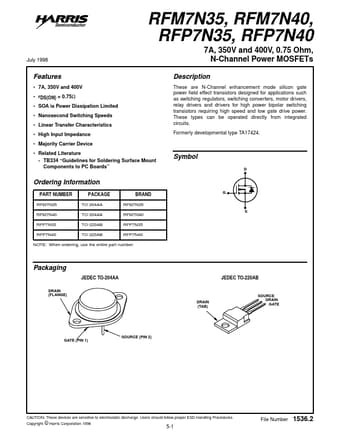

RFP7N35 Datasheet Preview — Preview of RFP7N35 PDF

Datasheet Details

Part number: RFP7N35
Manufacturer: Intersil Corporation
File Size: 47.43 KB
Datasheet: RFP7N35_IntersilCorporation.pdf
Description: N-Channel MOSFET
