RFP70N03 N-Channel Power MOSFETs

Fairchild Semiconductor

RFP70N03 Description

RFP70N03, RF1S70N03, RF1S70N03SM Data Sheet January 2002 70A, 30V, 0.010 Ohm, N-Channel Power MOSFETs These N-Channel power MOSFETs are manufacture.

RFP70N03 Features

* 70A, 30V
* rDS(ON) = 0.010Ω
* Temperature Compensating PSPICE® Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve (Single Pulse)
* 175oC Operating Temperature
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Com

RFP70N03 Applications

* such as switching regulators, switching converters, motor drivers, and relay drivers. These transistors can be operated directly from integrated circuits. Formerly developmental type TA49025. Ordering Information PART NUMBER PACKAGE BRAND RFP70N03 TO-220AB RFP70N03 RF1S70N03 TO-262AA F1S70

📥 Download Datasheet

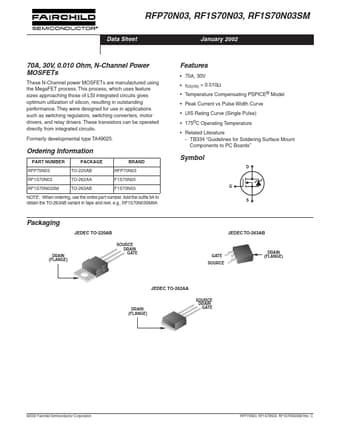

RFP70N03 Datasheet Preview — Preview of RFP70N03 PDF

Datasheet Details

Part number: RFP70N03
Manufacturer: Fairchild Semiconductor
File Size: 366.61 KB
Datasheet: RFP70N03_FairchildSemiconductor.pdf
Description: N-Channel Power MOSFETs
