G60N100, G60N100BNTD - NPT IGBT

Name: G60N100
SKU: G60N100-1480388

Fairchild Semiconductor

📥 Download Datasheet

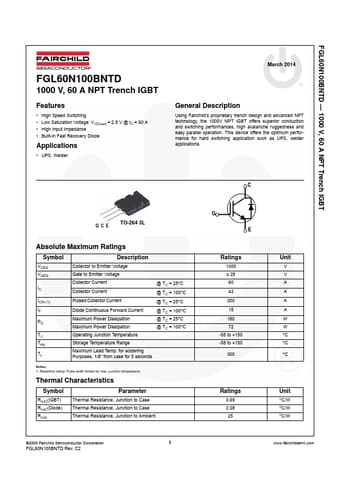

G60N100 Datasheet Preview — This datasheet PDF includes multiple part numbers: G60N100, G60N100BNTD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	G60N100, G60N100BNTD
Manufacturer	Fairchild Semiconductor
File Size	417.80 KB
Description	NPT IGBT
Datasheet	G60N100BNTD-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: G60N100, G60N100BNTD. Please refer to the document for exact specifications by model.

G60N100 Product details

Description

Using Fairchild's proprietary trench design and advanced NPT technology, the 1000V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation.

Features

High Speed Switching.
Low Saturation Voltage: VCE(sat) = 2.5 V @ IC = 60 A.
High Input Impedance.
Built-in Fast Recovery Diode.
