EM567169BC - 2M x 16 Pseudo SRAM

Etron Technology

The EM567169BC by Etron Technology is a 2M x 16 Pseudo SRAM. Below is the official datasheet preview.

📥 Download Datasheet

EM567169BC 2M x 16 Pseudo SRAM by Etron Technology - Datasheet Preview — Official preview page of the **EM567169BC** 2M x 16 Pseudo SRAM datasheet (Etron Technology).

Datasheet Details

Part number	EM567169BC
Manufacturer	Etron Technology
File Size	131.82 KB
Description	2M x 16 Pseudo SRAM
Datasheet	EM567169BC_EtronTechnology.pdf

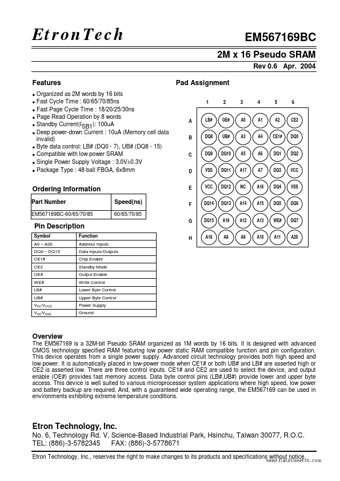

Additional preview pages of the EM567169BC datasheet.

EM567169BC Product details

Description

Symbol A0 A20 DQ0 DQ15 CE1# CE2 OE# WE# LB# UB# VCC/VCCQ VSS/VSSQ Function Address Inputs Data Inputs/Outputs Chip Enable Standby Mode Output Enable Write Control Lower Byte Control Upper Byte Control Power Supply Ground G DQ15 A19 A12 A13 WE# DQ7 H A18 A8 A9 A10 A11 A20 Overview The EM567169 is a 32M-bit Pseudo SRAM organized as 1M words by 16 bits.It is designed with advanced CMOS technology specified RAM featuring low power static RAM compatible function an

Features

Organized as 2M words by 16 bits.
Fast Cycle Time : 60/65/70/85ns.
Fast Page Cycle Time : 18/20/25/30ns.
Page Read Operation by 8 words.
Standby Current(ISB1): 100uA.
Deep power-down Current : 10uA (Memory cell data invalid).
Byte data control: LB# (DQ0 - 7), UB# (DQ8 - 15).
Compatible with low power SRAM.
Single Power Supply Voltage : 3.0V±0.3V.
Package Type : 48-ball FBGA, 6x8mm EM567169BC 2M x 16 Pseud.
