EM567168 - 2M x 16 Pseudo SRAM

Etron Technology

The EM567168 by Etron Technology is a 2M x 16 Pseudo SRAM. Below is the official datasheet preview.

📥 Download Datasheet

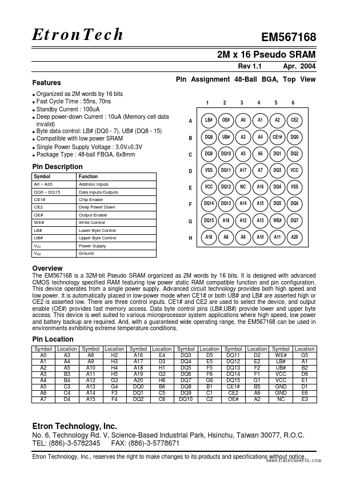

EM567168 2M x 16 Pseudo SRAM by Etron Technology - Datasheet Preview — Official preview page of the **EM567168** 2M x 16 Pseudo SRAM datasheet (Etron Technology).

Datasheet Details

Part number	EM567168
Manufacturer	Etron Technology
File Size	123.55 KB
Description	2M x 16 Pseudo SRAM
Datasheet	EM567168_EtronTechnology.pdf
Additional preview pages of the EM567168 datasheet.

EM567168 Product details

Description

Symbol A0 A20 DQ0 DQ15 CE1# CE2 OE# WE# LB# UB# VCC VSS Function Address Inputs Data Inputs/Outputs Chip Enable Deep Power Down Output Enable Write Control Lower Byte Control Upper Byte Control Power Supply Ground D VSS DQ11 A17 A7 DQ3 VCC E VCC DQ12 NC A16 DQ4 VSS F DQ14 DQ13 A14 A15 DQ5 DQ6 G DQ15 A19 A12 A13 WE# DQ7 H A18 A8 A9 A10 A11 A20 Overview The EM567168 is a 32M-bit Pseudo SRAM organized as 2M words by 16 bits.It is designed wit

Features

Organized as 2M words by 16 bits.
Fast Cycle Time : 55ns, 70ns.
Standby Current : 100uA.
Deep power-down Current : 10uA (Memory cell data invalid).
Byte data control: LB# (DQ0 - 7), UB# (DQ8 - 15).
Compatible with low power SRAM.
Single Power Supply Voltage : 3.0V±0.3V.
Package Type : 48-ball FBGA, 6x8mm EM567168 2M x 16 Pseudo SRAM Rev 1.1 Apr. 2004 Pin Assignment 48-Ball BGA, Top View 1 2 3 4 5 6 A LB# OE# A0.
