EM565168 - 512K x 16 Pseudo SRAM

Etron Technology

The EM565168 by Etron Technology is a 512K x 16 Pseudo SRAM. Below is the official datasheet preview.

📥 Download Datasheet

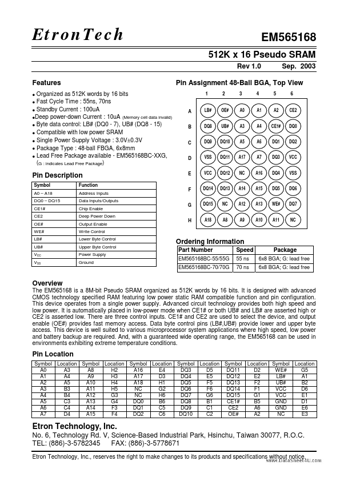

EM565168 512K x 16 Pseudo SRAM by Etron Technology - Datasheet Preview — Official preview page of the **EM565168** 512K x 16 Pseudo SRAM datasheet (Etron Technology).

Datasheet Details

Part number	EM565168
Manufacturer	Etron Technology
File Size	124.54 KB
Description	512K x 16 Pseudo SRAM
Datasheet	EM565168_EtronTechnology.pdf
Additional preview pages of the EM565168 datasheet.

EM565168 Product details

Description

Symbol A0 A18 DQ0 DQ15 CE1# CE2 OE# WE# LB# UB# VCC VSS Function Address Inputs Data Inputs/Outputs Chip Enable Deep Power Down Output Enable Write Control Lower Byte Control Upper Byte Control Power Supply Ground E VCC DQ14 DQ12 DQ13 NC A14 A16 A15 DQ4 DQ5 VSS DQ6 F G H DQ15 NC A12 A13 WE# DQ7 A18 A8 A9 A10 A11 NC Ordering Information Part Number EM565168BC-55/55G EM565168BC-70/70G Speed 55 ns 70 ns Package 6x8 BGA; G: lead free 6x8 BGA; G: lead free

Features

Organized as 512K words by 16 bits.
Fast Cycle Time : 55ns, 70ns.
Standby Current : 100uA.
Deep power-down Current : 10uA (Memory cell data invalid).
Byte data control: LB# (DQ0 - 7), UB# (DQ8 - 15).
Compatible with low power SRAM.
Single Power Supply Voltage : 3.0V±0.3V.
Package Type : 48-ball FBGA, 6x8mm.
Lead Free Package available - EM565168BC-XXG, (G : indicates Lead Free Package) EM565168 512K x 16 Pseudo SRA.
