EM562081 - 256K x 8 Low Power SRAM

Name: EM562081
SKU: EM562081-582969

Etron Technology

The EM562081 by Etron Technology is a 256K x 8 Low Power SRAM. Below is the official datasheet preview.

Datasheet Details

Part number	EM562081
Manufacturer	Etron Technology
File Size	118.62 KB
Description	256K x 8 Low Power SRAM
Datasheet	EM562081_EtronTechnology.pdf

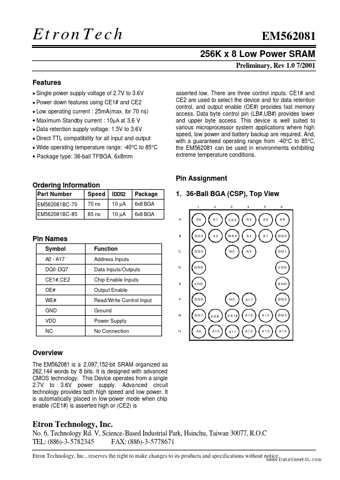

Additional preview pages of the EM562081 datasheet.

Single power supply voltage of 2.7V to 3.6V.
Power down features using CE1# and CE2.
Low operating current : 25mA(max. for 70 ns).
Maximum Standby current : 10µA at 3.6 V.
Data retention supply voltage: 1.5V to 3.6V.
Direct TTL compatibility for all input and output.
Wide operating temperature range: -40°C to 85°C.
Package type: 36-ball TFBGA, 6x8mm EM562081 256K x 8 Low Power SRAM Preliminary, Rev 1.0 7/2001 asserted low.
