EBRT2X45S - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT2X45S
Manufacturer	Eris
File Size	190.46 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT2X45S Datasheet

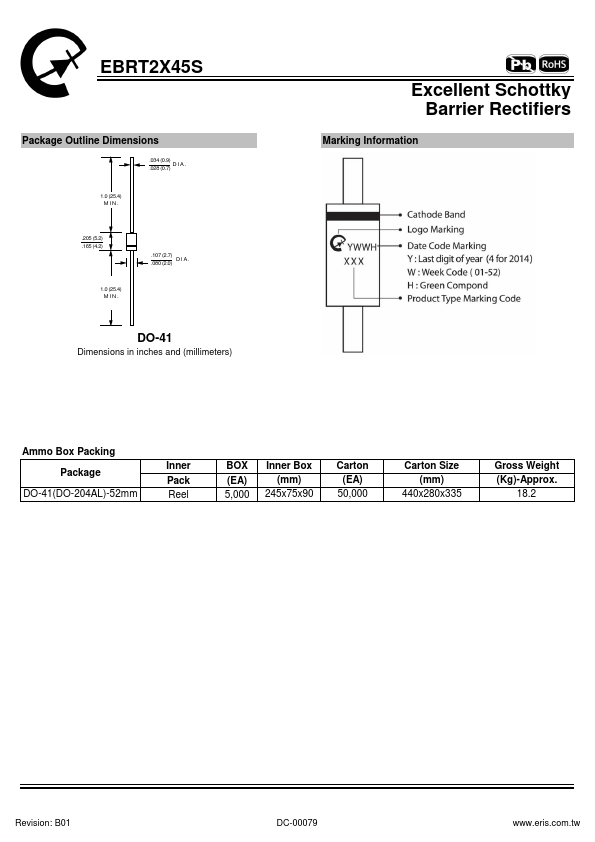

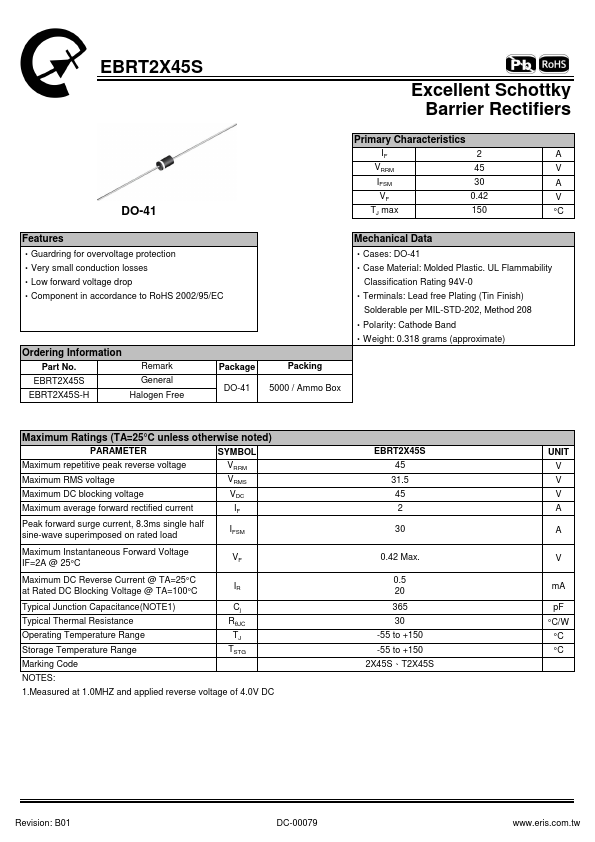

Additional preview pages of the EBRT2X45S datasheet.

‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. Remark EBRT2X45S General EBRT2X45S-H Halogen Free Package DO-41 Packing 5000 / Ammo Box Mechanical Data ‧Cases: DO-41 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.318 grams (.
