EBRT20E150CD2 - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT20E150CD2
Manufacturer	Eris
File Size	241.32 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT20E150CD2 Datasheet

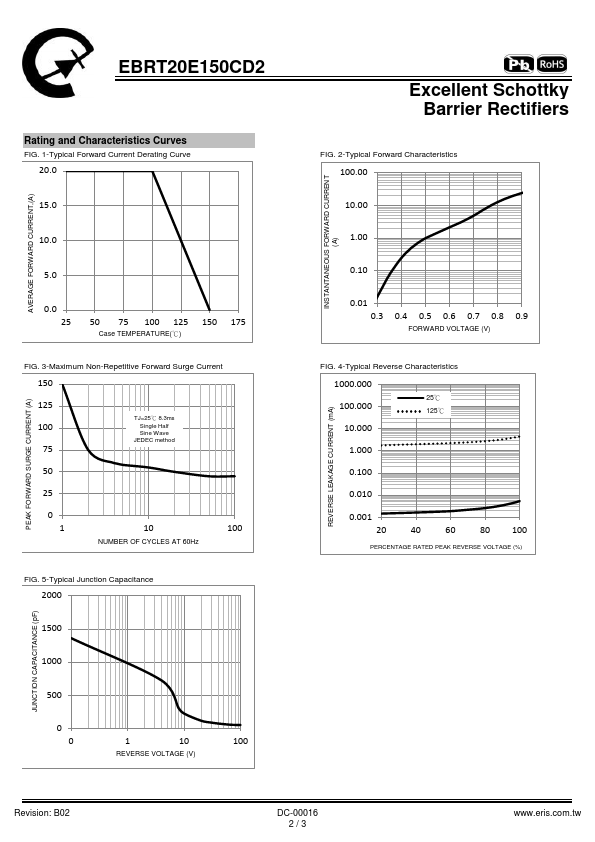

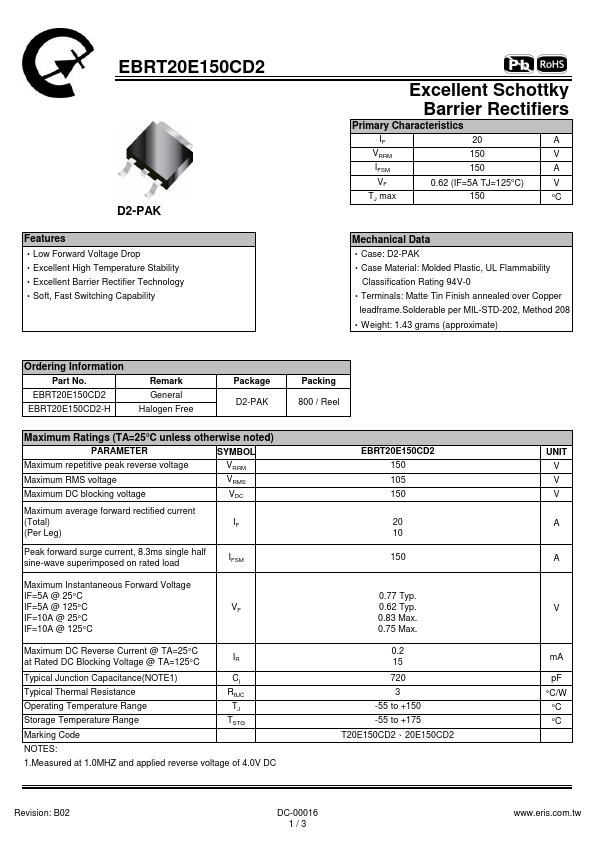

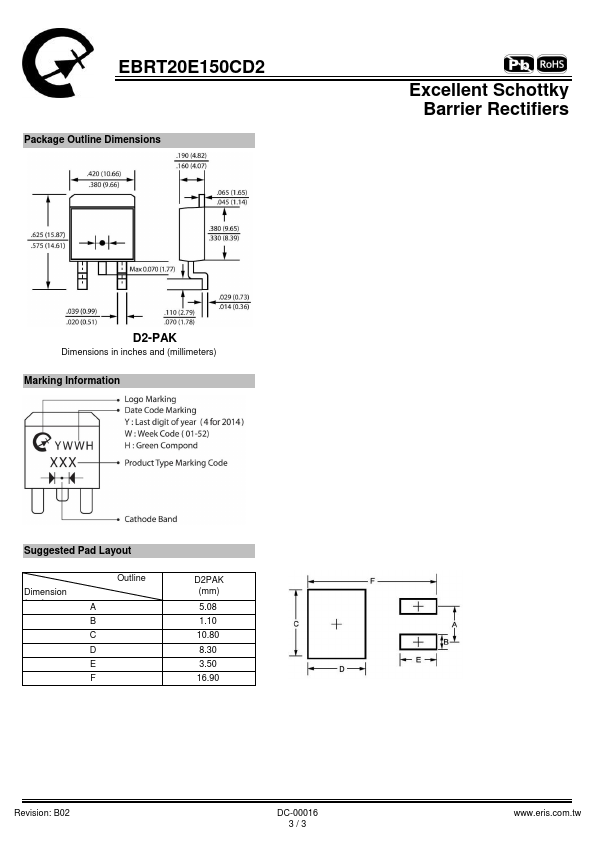

Additional preview pages of the EBRT20E150CD2 datasheet.

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF VRRM IFSM VF TJ max 20 A 150 V 150 A 0.62 (IF=5A TJ=125oC) V 150 °C Mechanical Data ‧Case: D2-PAK ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 1.
