EBRT20L80FCT - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT20L80FCT
Manufacturer	Eris
File Size	405.29 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT20L80FCT Datasheet

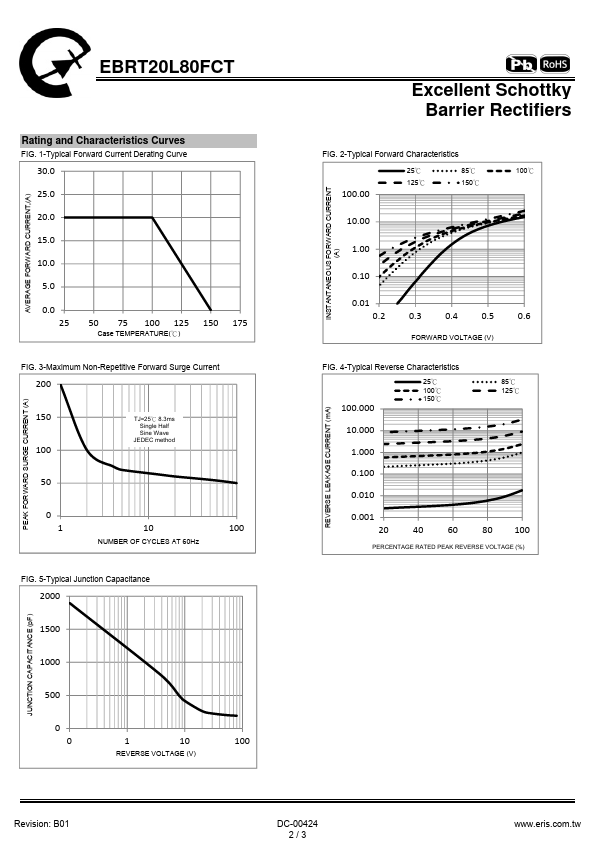

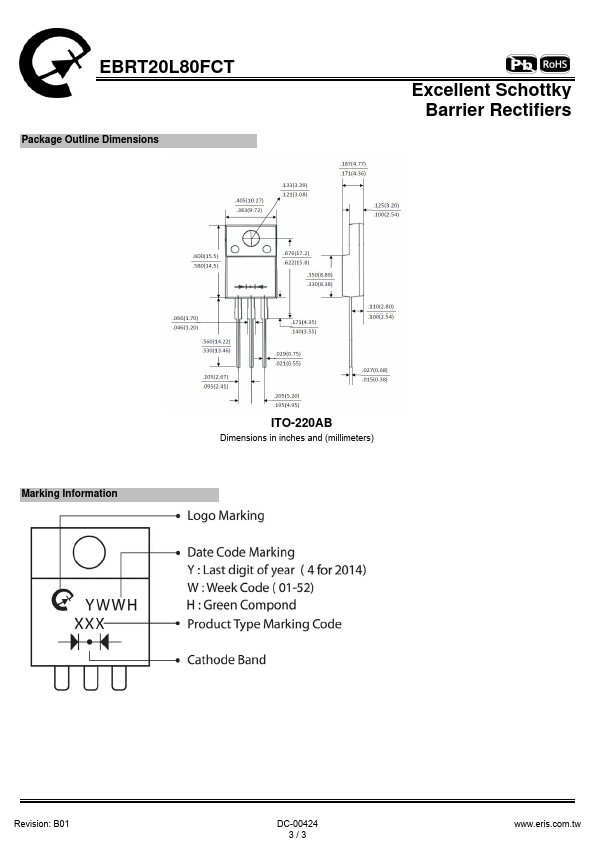

Additional preview pages of the EBRT20L80FCT datasheet.

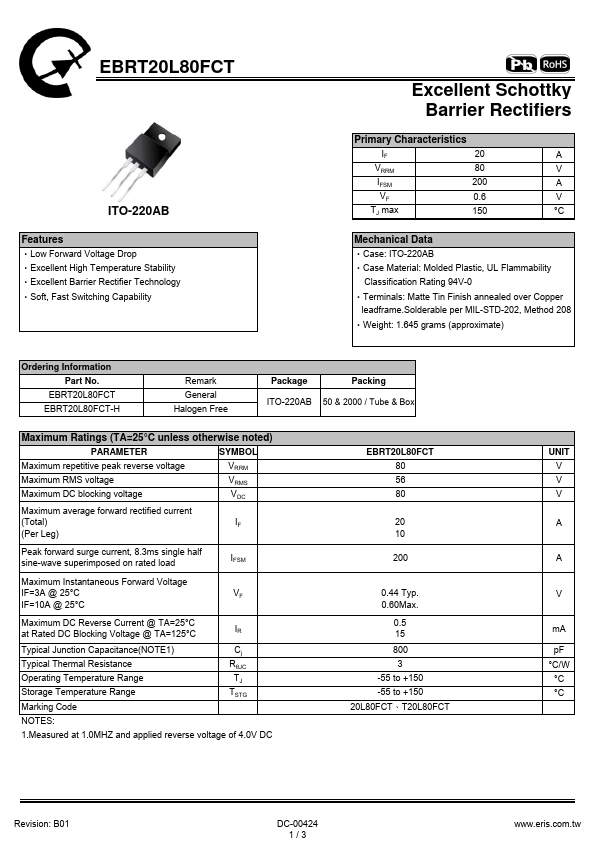

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF 20 A VRRM 80 V IFSM 200 A VF 0.6 V TJ max 150 °C Mechanical Data ‧Case: ITO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 1.645 grams (a.
