EBRT20L80CT - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT20L80CT
Manufacturer	Eris
File Size	261.85 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT20L80CT Datasheet

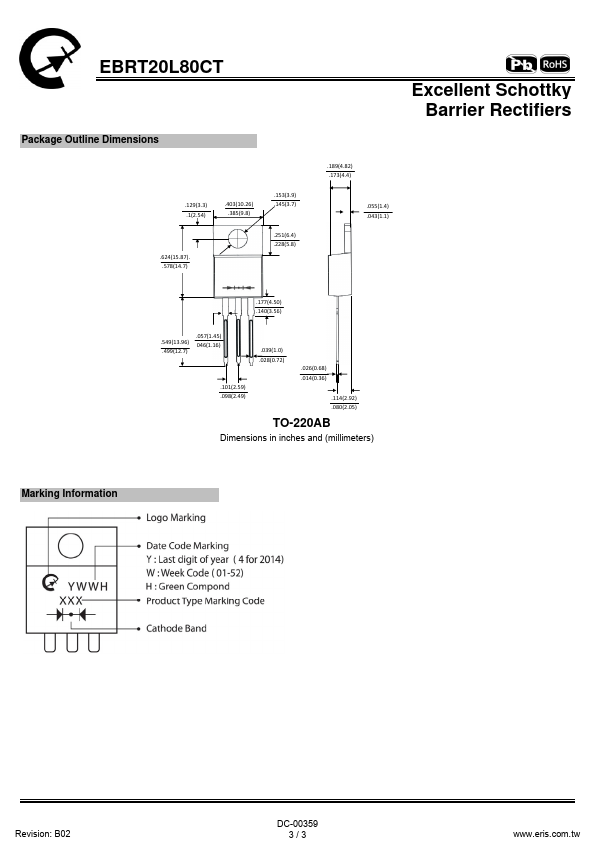

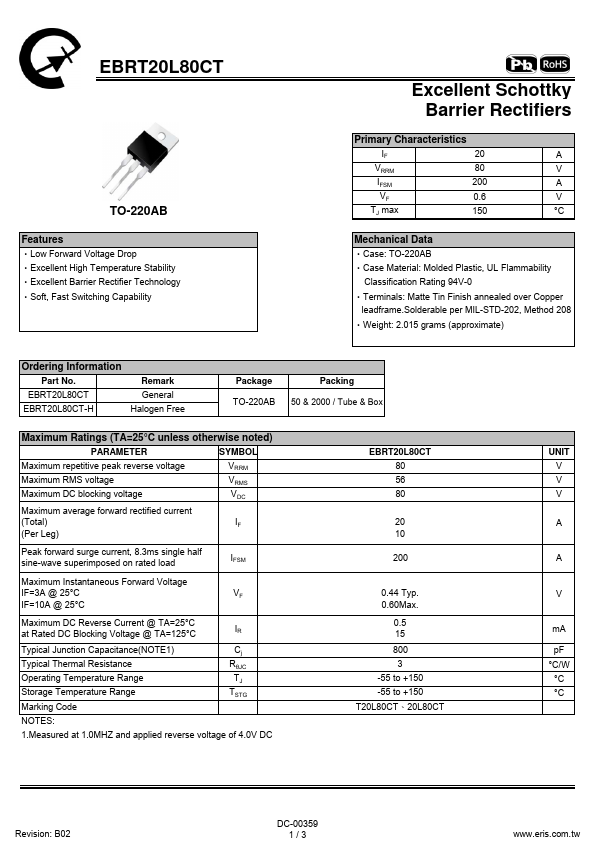

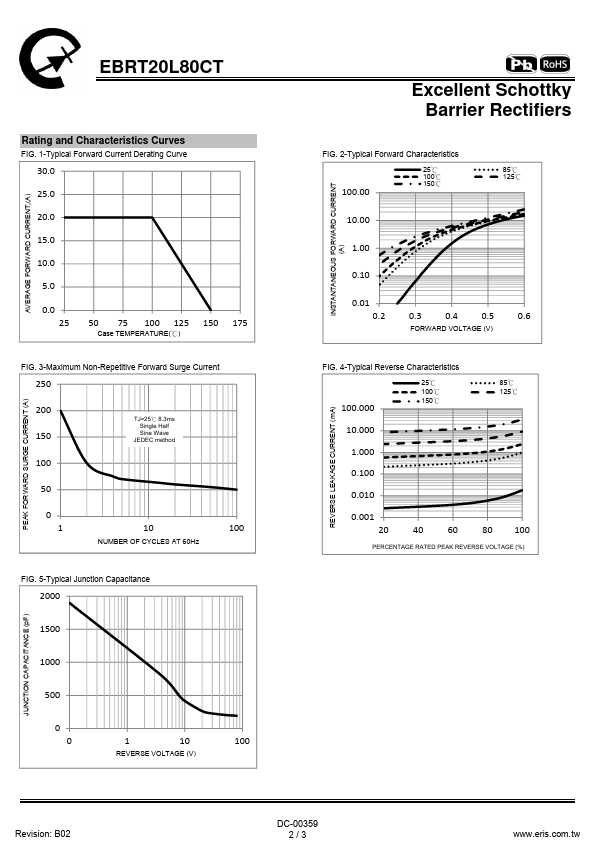

Additional preview pages of the EBRT20L80CT datasheet.

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF 20 A VRRM 80 V IFSM 200 A VF 0.6 V TJ max 150 °C Mechanical Data ‧Case: TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 2.015 grams (ap.
