EBRT2X100M - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT2X100M
Manufacturer	Eris
File Size	216.58 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT2X100M Datasheet

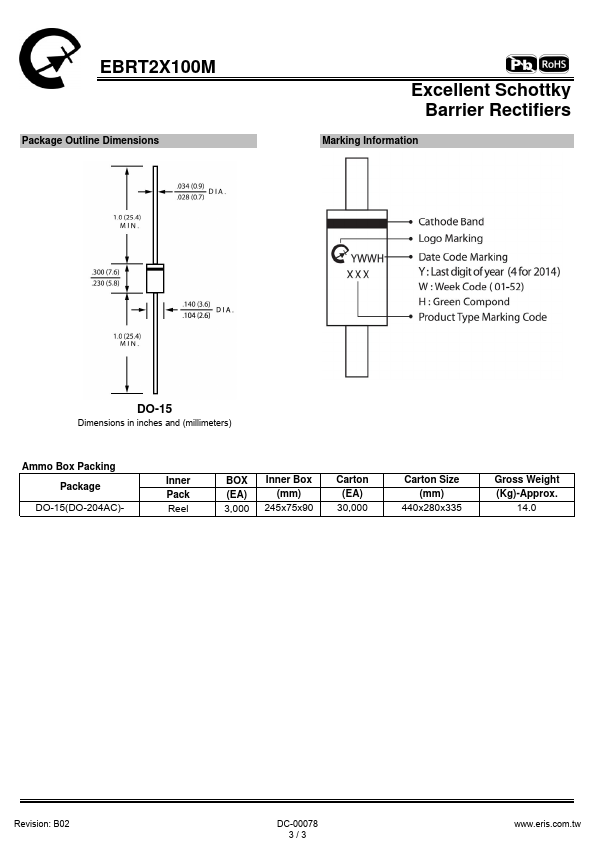

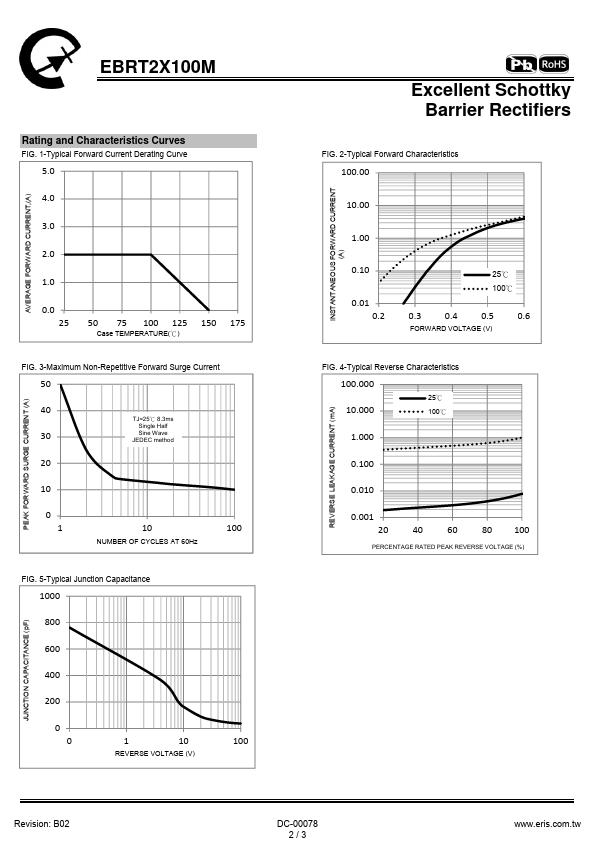

Additional preview pages of the EBRT2X100M datasheet.

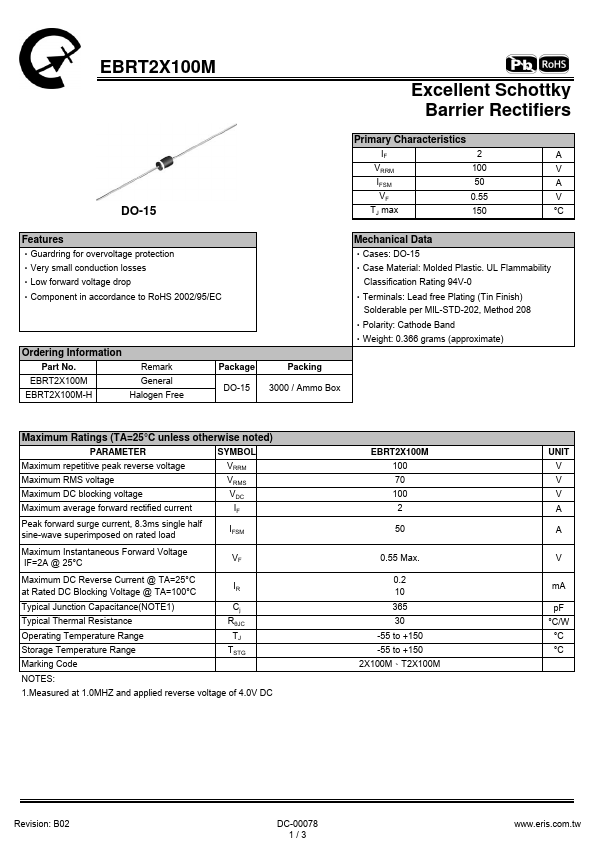

‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. Remark EBRT2X100M General EBRT2X100M-H Halogen Free Package DO-15 Packing 3000 / Ammo Box Mechanical Data ‧Cases: DO-15 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.366 grams.
