EBRT20E200D - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT20E200D
Manufacturer	Eris
File Size	196.36 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT20E200D Datasheet

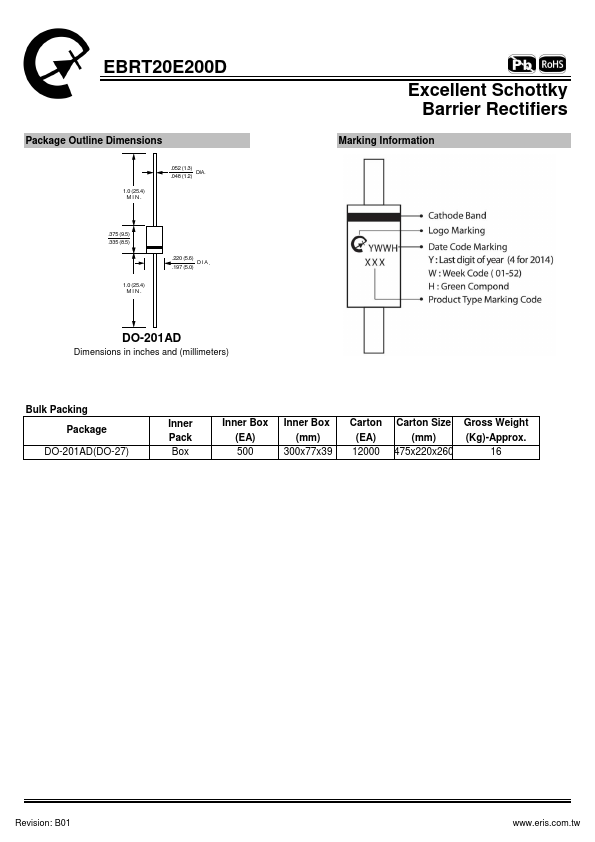

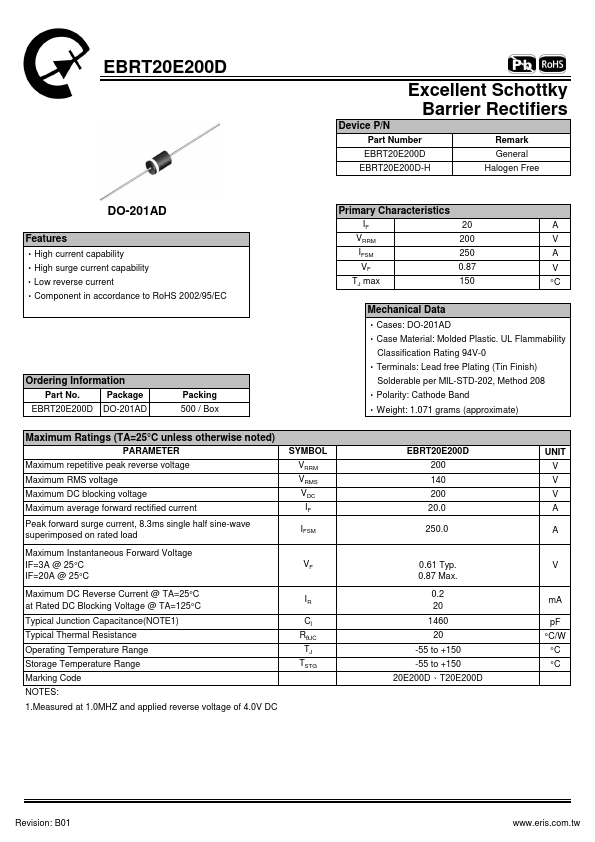

Additional preview pages of the EBRT20E200D datasheet.

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. Package EBRT20E200D DO-201AD Packing 500 / Box Primary Characteristics IF 20 A VRRM 200 V IFSM 250 A VF 0.87 V TJ max 150 °C Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity:.
