EN29LV320A - 32 Megabit (4096K x 8-bit / 2048K x 16-bit) Flash Memory Boot Sector Flash Memory

Eon Silicon Solution

The EN29LV320A by Eon Silicon Solution is a 32 Megabit (4096K x 8-bit / 2048K x 16-bit) Flash Memory Boot Sector Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

EN29LV320A 32 Megabit (4096K x 8-bit / 2048K x 16-bit) Flash Memory Boot Sector Flash Memory by Eon Silicon Solution - Datasheet Preview — Official preview page of the **EN29LV320A** 32 Megabit (4096K x 8-bit / 2048K x 16-bit) Flash Memory Boot Sector Flash Memory datasheet (Eon Silicon Solution).

Datasheet Details

Part number	EN29LV320A
Manufacturer	Eon Silicon Solution
File Size	483.37 KB
Description	32 Megabit (4096K x 8-bit / 2048K x 16-bit) Flash Memory Boot Sector Flash Memory
Datasheet	EN29LV320A_EonSiliconSolution.pdf

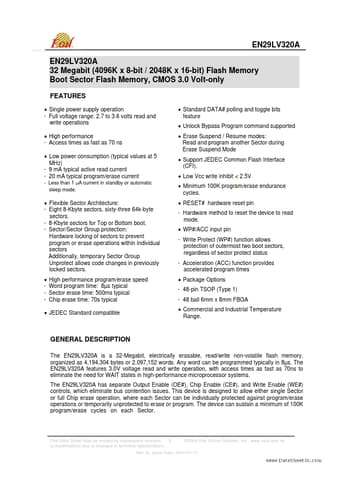

Additional preview pages of the EN29LV320A datasheet.

EN29LV320A Product details

Description

The EN29LV320A is a 32-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 4,194,304 bytes or 2.097,152 words.

Features

Single power supply operation - Full voltage range: 2.7 to 3.6 volts read and write operations.
High performance - Access times as fast as 70 ns.
Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 μA current in standby or automatic sleep mode.
Standard DATA# polling and toggle bits feature.
Unlock Bypass Program command supported.
Erase Suspend / Resume mod.
