EN29LV640A - 64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory

Name: EN29LV640A
SKU: EN29LV640A-1347123

EON

The EN29LV640A by EON is a 64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory. Below is the official datasheet preview.

Datasheet Details

Part number	EN29LV640A
Manufacturer	EON
File Size	576.85 KB
Description	64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory
Datasheet	EN29LV640A-EON.pdf

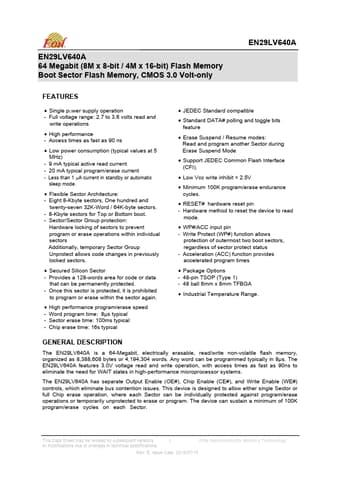

Additional preview pages of the EN29LV640A datasheet.

Single power supply operation - Full voltage range: 2.7 to 3.6 volts read and write operations.
High performance - Access times as fast as 90 ns.
Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 μA current in standby or automatic sleep mode.
Flexible Sector Architecture: - Eight 8-Kbyte sectors, One hundred and twenty-seven 32K-Word / 64K-byte sectors. - 8-Kbyte sectors fo.
