EN29LV160A - 16 Megabit (2048K x 8-bit / 1024K x 16-bit) Flash Memory Boot Sector Flash Memory

Eon Silicon Solution

The EN29LV160A by Eon Silicon Solution is a 16 Megabit (2048K x 8-bit / 1024K x 16-bit) Flash Memory Boot Sector Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

EN29LV160A 16 Megabit (2048K x 8-bit / 1024K x 16-bit) Flash Memory Boot Sector Flash Memory by Eon Silicon Solution - Datasheet Preview — Official preview page of the **EN29LV160A** 16 Megabit (2048K x 8-bit / 1024K x 16-bit) Flash Memory Boot Sector Flash Memory datasheet (Eon Silicon Solution).

Datasheet Details

Part number	EN29LV160A
Manufacturer	Eon Silicon Solution
File Size	477.35 KB
Description	16 Megabit (2048K x 8-bit / 1024K x 16-bit) Flash Memory Boot Sector Flash Memory
Datasheet	EN29LV160A_EonSiliconSolution.pdf

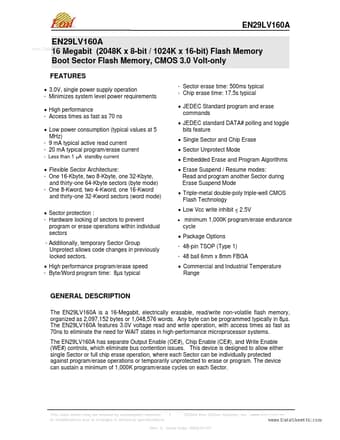

Additional preview pages of the EN29LV160A datasheet.

EN29LV160A Product details

Description

The EN29LV160A is a 16-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 2,097,152 bytes or 1,048,576 words.

Features

3.0V, single power supply operation - Minimizes system level power requirements.
High performance - Access times as fast as 70 ns.
Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 µA standby current - Sector erase time: 500ms typical - Chip erase time: 17.5s typical.
JEDEC Standard program and erase commands.
JEDEC standard DATA# polling and toggle bits feature.
