EN29LV320 - 32M Flash Memory Boot Sector Flash Memory

Eon Silicon Solution

The EN29LV320 by Eon Silicon Solution is a 32M Flash Memory Boot Sector Flash Memory. Below is the official datasheet preview.

Datasheet Details

Part number	EN29LV320
Manufacturer	Eon Silicon Solution
File Size	1.41 MB
Description	32M Flash Memory Boot Sector Flash Memory
Datasheet	EN29LV320_EonSiliconSolution.pdf

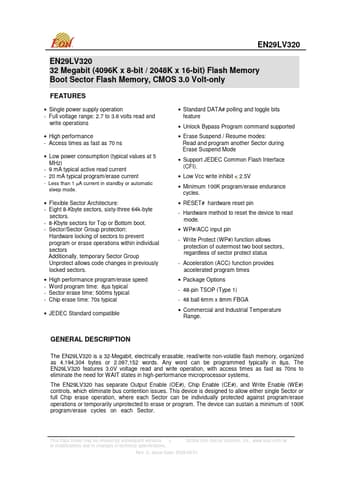

Additional preview pages of the EN29LV320 datasheet.

The EN29LV320 is a 32-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 4,194,304 bytes or 2.097,152 words.

Single power supply operation - Full voltage range: 2.7 to 3.6 volts read and write operations.
High performance - Access times as fast as 70 ns.
Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 µA current in standby or automatic sleep mode.
Flexible Sector Architecture: - Eight 8-Kbyte sectors, sixty-three 64k-byte sectors. - 8-Kbyte sectors for Top or Bottom boot. - Secto.
