EN29LV640U - (EN29LV640U / EN29LV641x) Flash Memory

Name: EN29LV640U
SKU: EN29LV640U-572215

EON

The EN29LV640U by EON is a (EN29LV640U / EN29LV641x) Flash Memory. Below is the official datasheet preview.

Datasheet Details

Part number	EN29LV640U
Manufacturer	EON
File Size	548.96 KB
Description	(EN29LV640U / EN29LV641x) Flash Memory
Datasheet	EN29LV640U_EON.pdf

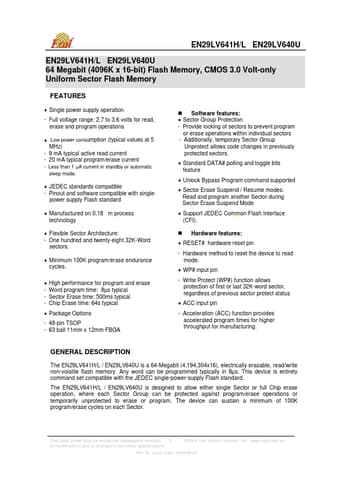

Additional preview pages of the EN29LV640U datasheet.

The EN29LV641H/L / EN29LV640U is a 64-Megabit (4,194,304x16), electrically erasable, read/write non-volatile flash memory.

Single power supply operation - Full voltage range: 2.7 to 3.6 volts for read, erase and program operations.
Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 µA current in standby or automatic sleep mode.
Software features:.
Sector Group Protection - Provide locking of sectors to prevent program or erase operations within individual sectors - Additionally, temporary Sector.
