EN29LV640T - 64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory Boot Sector Flash Memory

Eon Silicon Solution

The EN29LV640T by Eon Silicon Solution is a 64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory Boot Sector Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

EN29LV640T 64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory Boot Sector Flash Memory by Eon Silicon Solution - Datasheet Preview — Official preview page of the **EN29LV640T** 64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory Boot Sector Flash Memory datasheet (Eon Silicon Solution).

Datasheet Details

Part number	EN29LV640T
Manufacturer	Eon Silicon Solution
File Size	554.12 KB
Description	64 Megabit (8M x 8-bit / 4M x 16-bit) Flash Memory Boot Sector Flash Memory
Datasheet	EN29LV640T_EonSiliconSolution.pdf

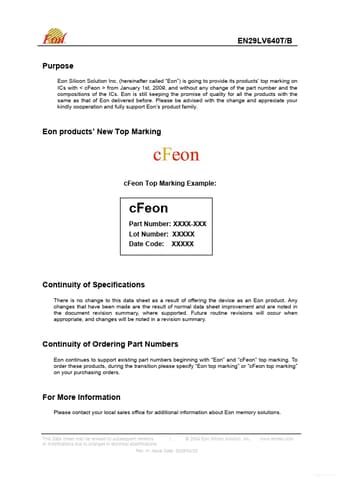

Additional preview pages of the EN29LV640T datasheet.

EN29LV640T Product details

Description

The EN29LV640T/B is a 64-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 8,388,608 bytes or 4,194,304 words.

Features

Single power supply operation - Full voltage range: 2.7 to 3.6 volts read and write operations.
High performance - Access times as fast as 70 ns.
Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 μA current in standby or automatic sleep mode.
Standard DATA# polling and toggle bits feature.
Unlock Bypass Program command supported.
Erase Suspend / Resume mod.
