EDJ1116DJBG, EDJ1108DJBG - 1G bits DDR3 SDRAM

Elpida Memory

📥 Download Datasheet

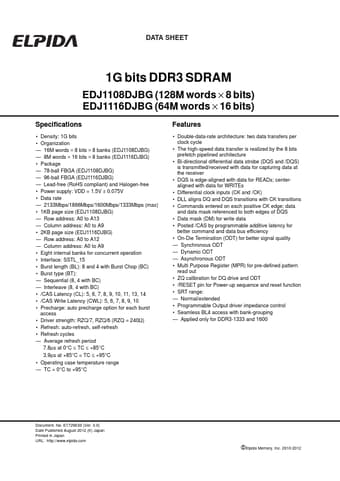

EDJ1116DJBG Datasheet Preview — This datasheet PDF includes multiple part numbers: EDJ1116DJBG, EDJ1108DJBG. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EDJ1116DJBG, EDJ1108DJBG
Manufacturer	Elpida Memory
File Size	321.34 KB
Description	1G bits DDR3 SDRAM
Datasheet	EDJ1108DJBG-ElpidaMemory.pdf
Note	This datasheet PDF includes multiple part numbers: EDJ1116DJBG, EDJ1108DJBG. Please refer to the document for exact specifications by model.

EDJ1116DJBG Product details

Features

Double-data-rate architecture: two data transfers per clock cycle.
The high-speed data transfer is realized by the 8 bits prefetch pipelined architecture.
Bi-directional differential data strobe (DQS and /DQS) is transmitted/received with data for capturing data at the receiver.
DQS is edge-aligned with data for READs; centeraligned with data for WRITEs.
Differential clock inputs (CK and /CK).
DLL aligns DQ and DQS transitions with CK transi.
