EDJ1116DBSE, EDJ1108DBSE - 64M words x 16 bits 1G bits DDR3 SDRAM

Elpida Memory

📥 Download Datasheet

EDJ1116DBSE Datasheet Preview — This datasheet PDF includes multiple part numbers: EDJ1116DBSE, EDJ1108DBSE. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EDJ1116DBSE, EDJ1108DBSE
Manufacturer	Elpida Memory
File Size	2.19 MB
Description	64M words x 16 bits 1G bits DDR3 SDRAM
Datasheet	EDJ1108DBSE-ElpidaMemory.pdf
Note	This datasheet PDF includes multiple part numbers: EDJ1116DBSE, EDJ1108DBSE. Please refer to the document for exact specifications by model.

EDJ1116DBSE Product details

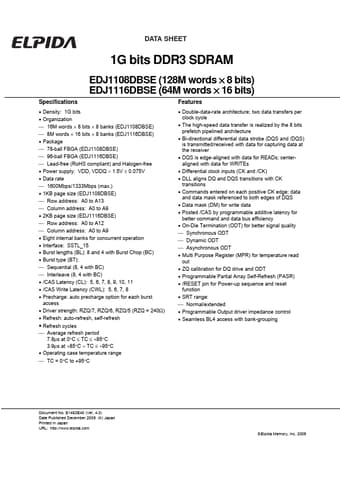

Features

Double-data-rate architecture; two data transfers per clock cycle.
The high-speed data transfer is realized by the 8 bits prefetch pipelined architecture.
Bi-directional differential data strobe (DQS and /DQS) is transmitted/received with data for capturing data at the receiver.
DQS is edge-aligned with data for READs; centeraligned with data for WRITEs.
Differential clock inputs (CK and /CK).
DLL aligns DQ and DQS transitions with CK transi.
